4D Cross Laser LLP4DG Green STALCO PERFECT S058598012

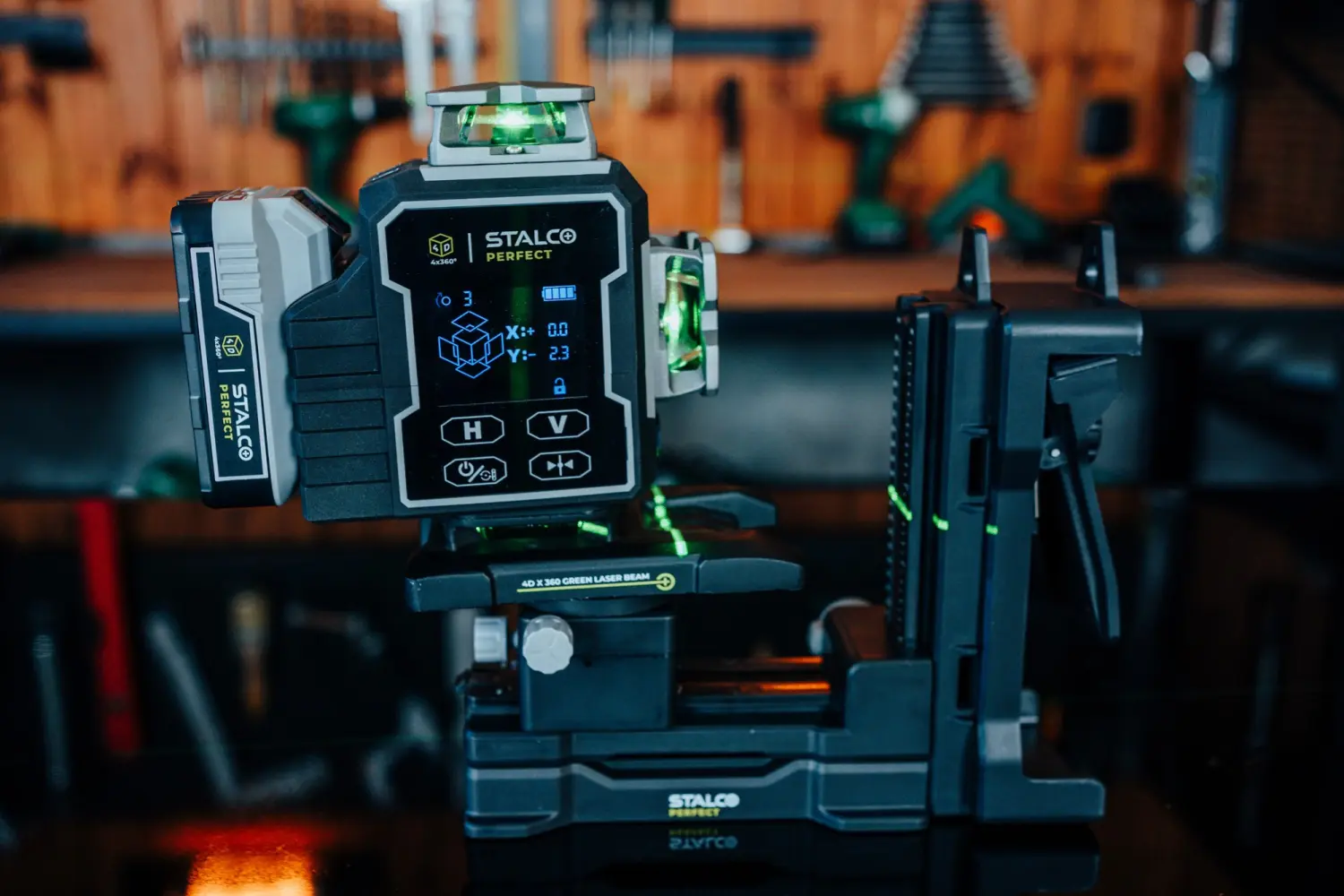

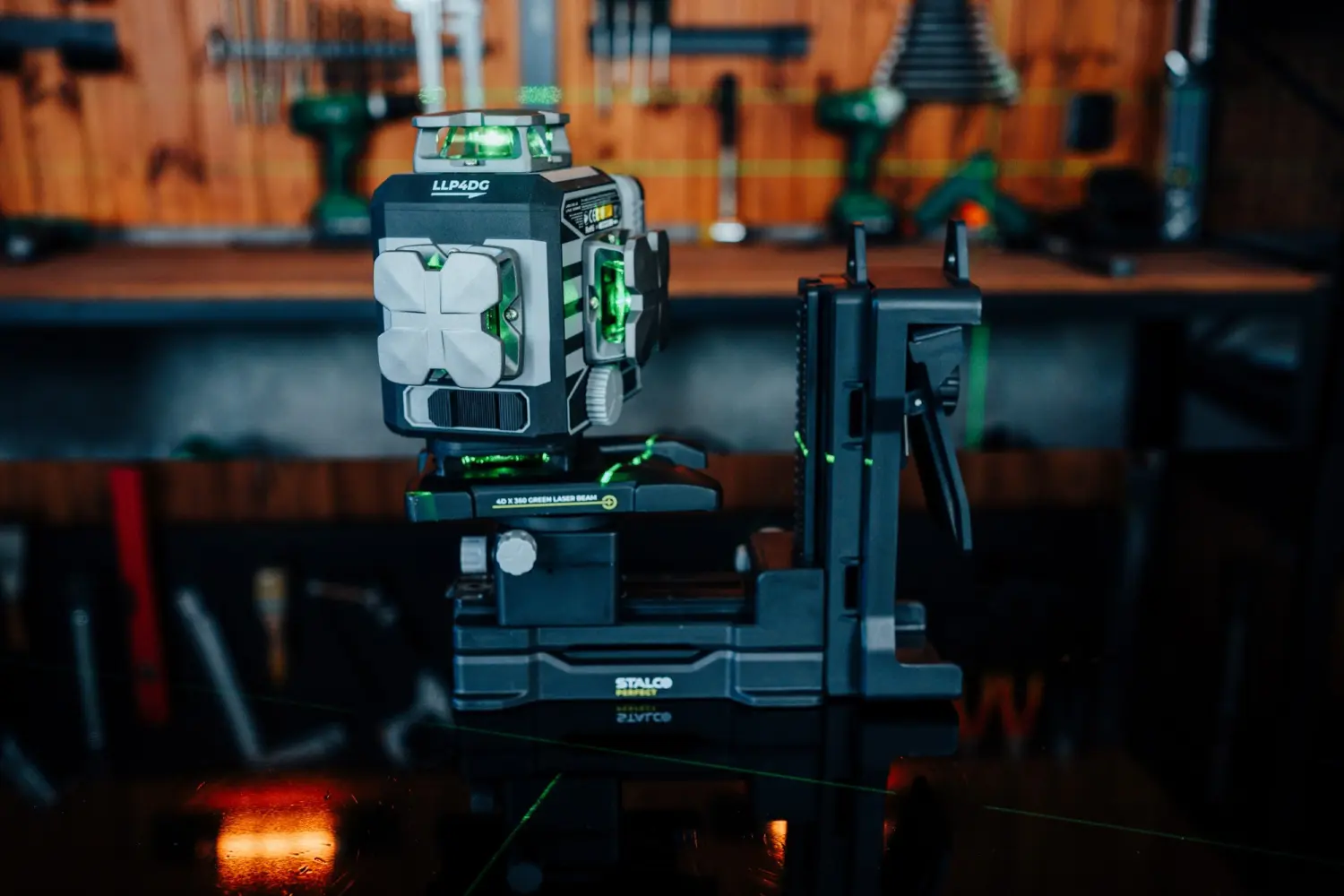

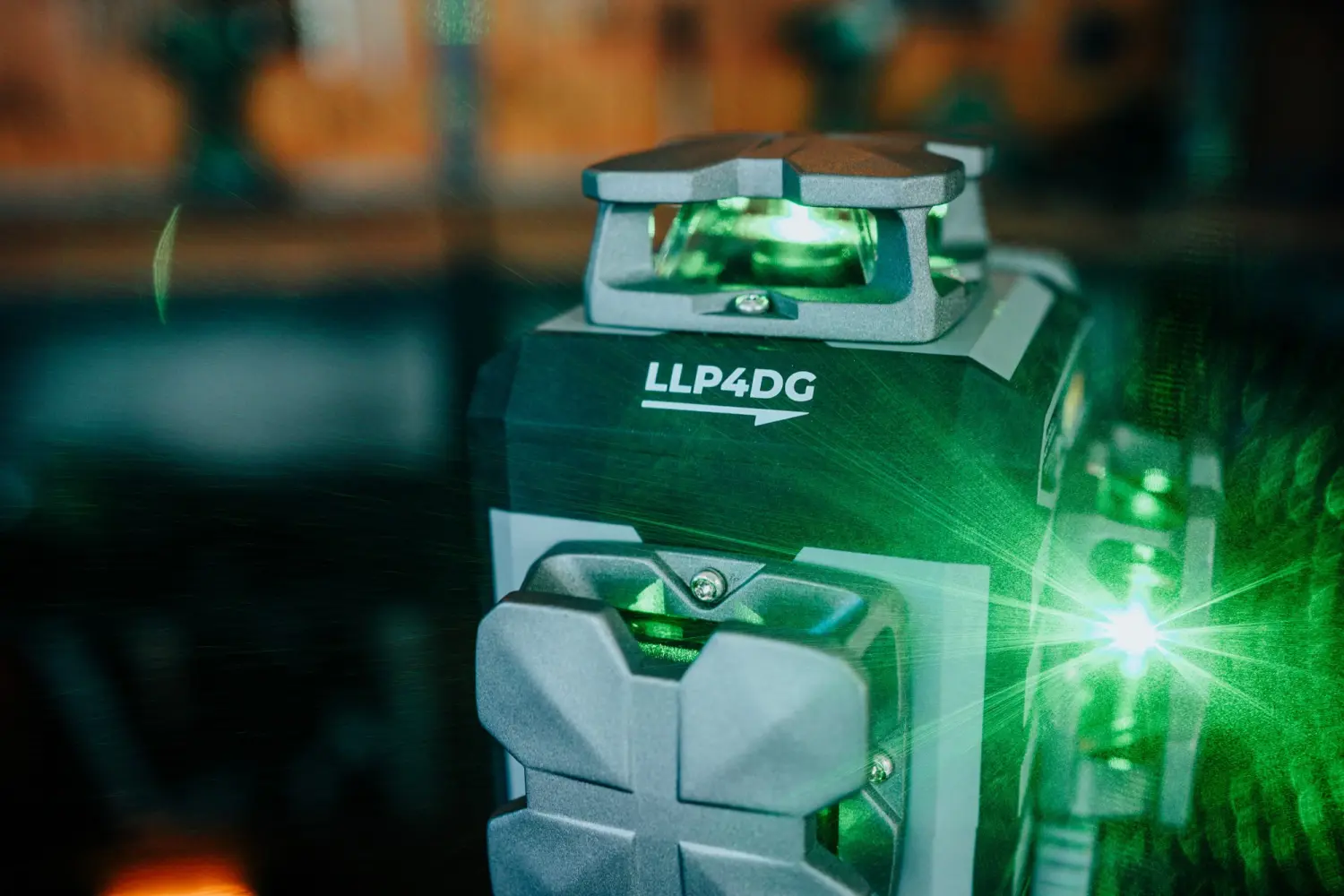

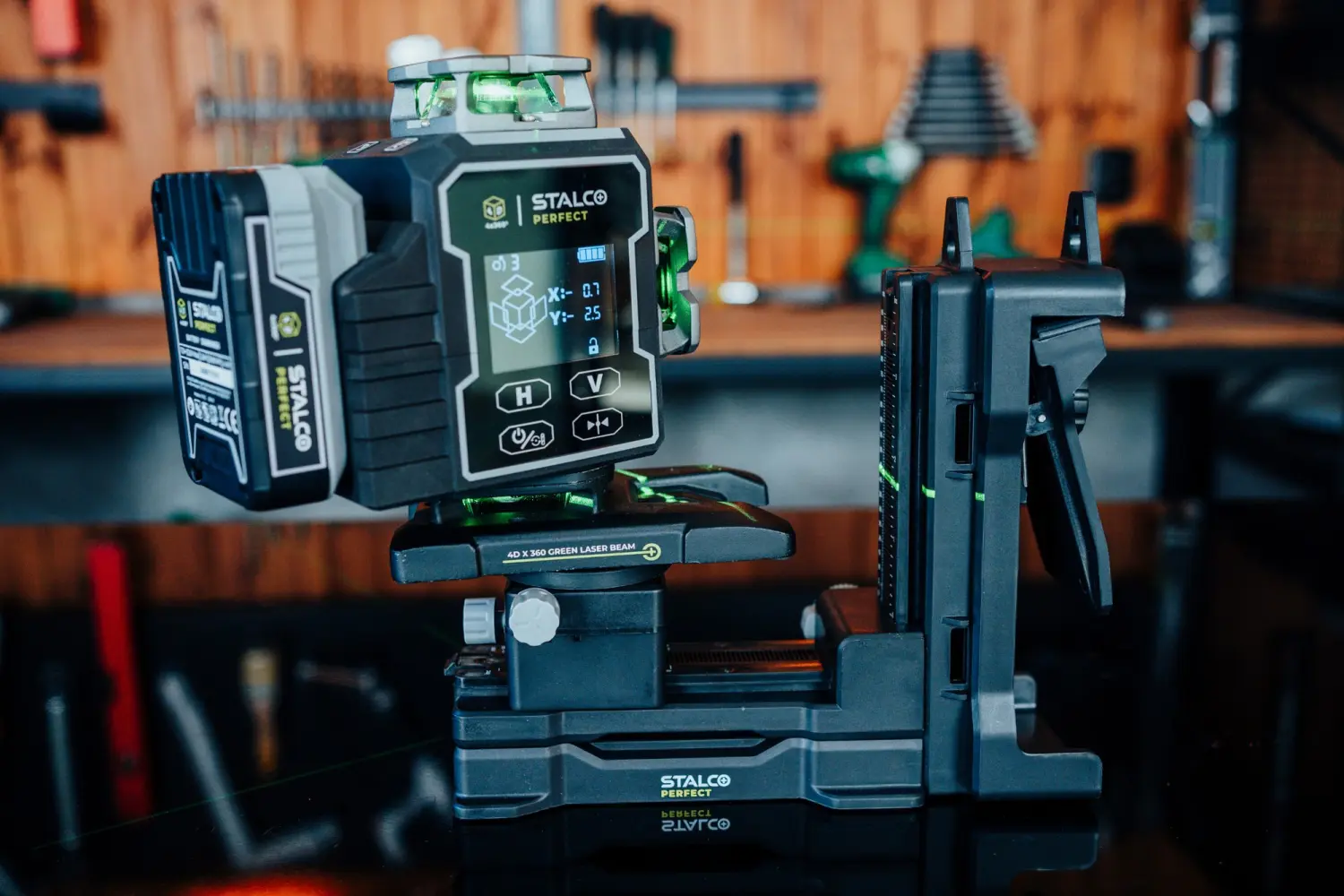

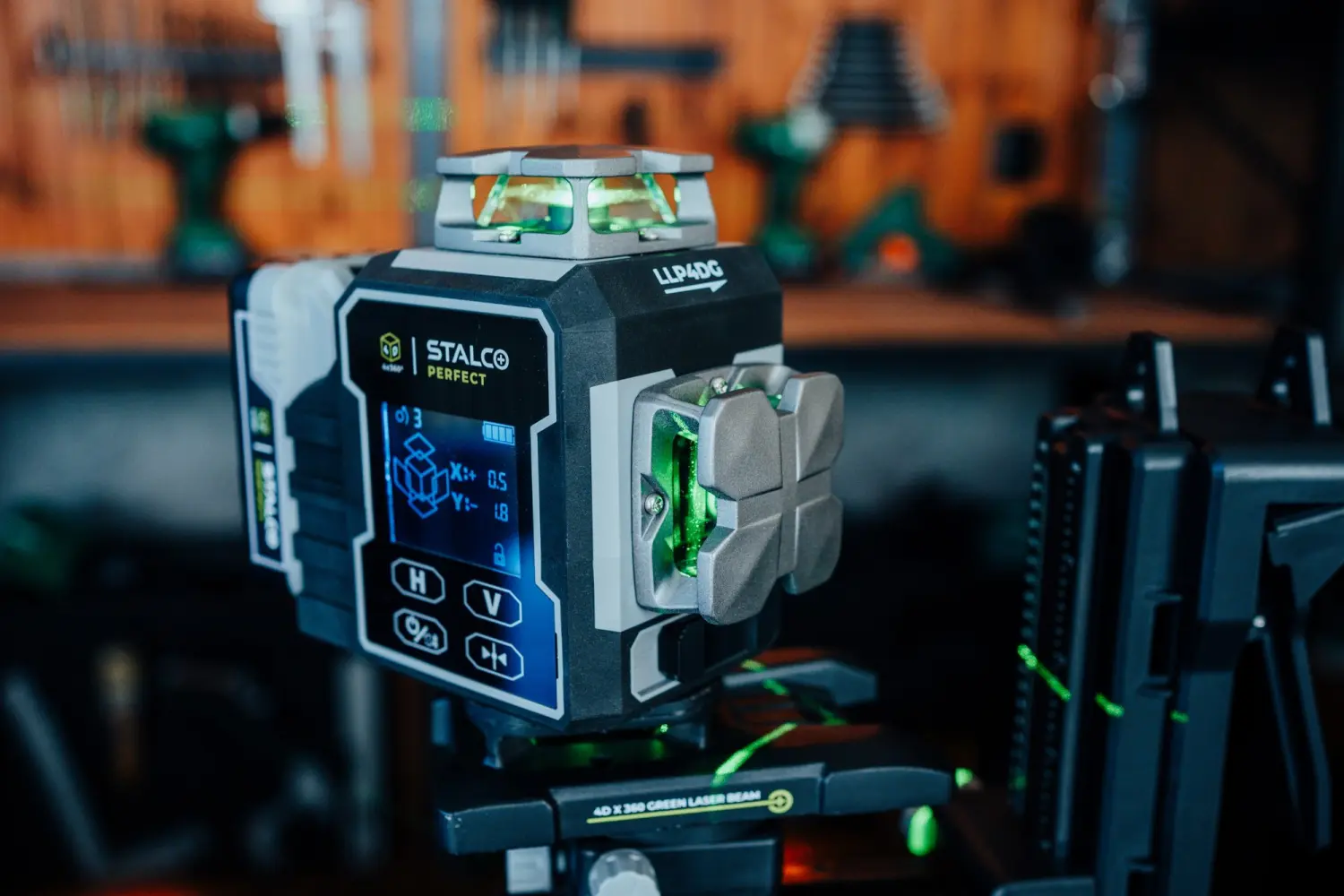

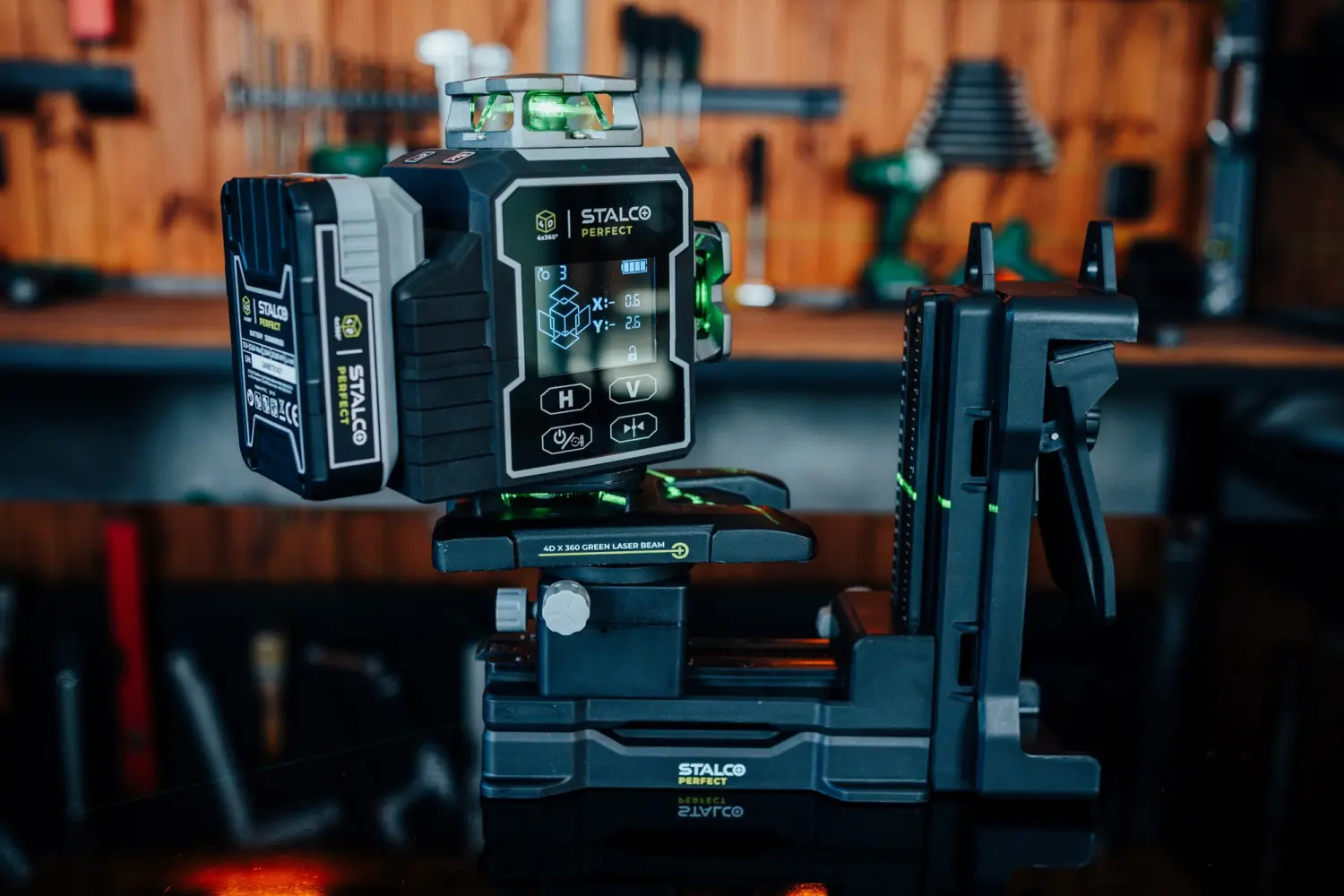

The Stalco Perfect LLP4DG 4D Laser is the most advanced model in the Stalco range, designed for professionals who demand maximum precision and functionality. Equipped with a green laser beam and 16 laser lines, it provides full control through a large display and innovative control features. The LLP4DG has a motorized laser base, allowing precise adjustment of the laser position via buttons on the device, remote control, or mobile app.

Thanks to its robust construction, comprehensive accessory set, and long battery life, the LLP4DG is ideal for the most demanding measurement tasks.

Key Features:

• 16 green laser lines: Provides full 4D projection, perfect for precise measurements in multiple planes.

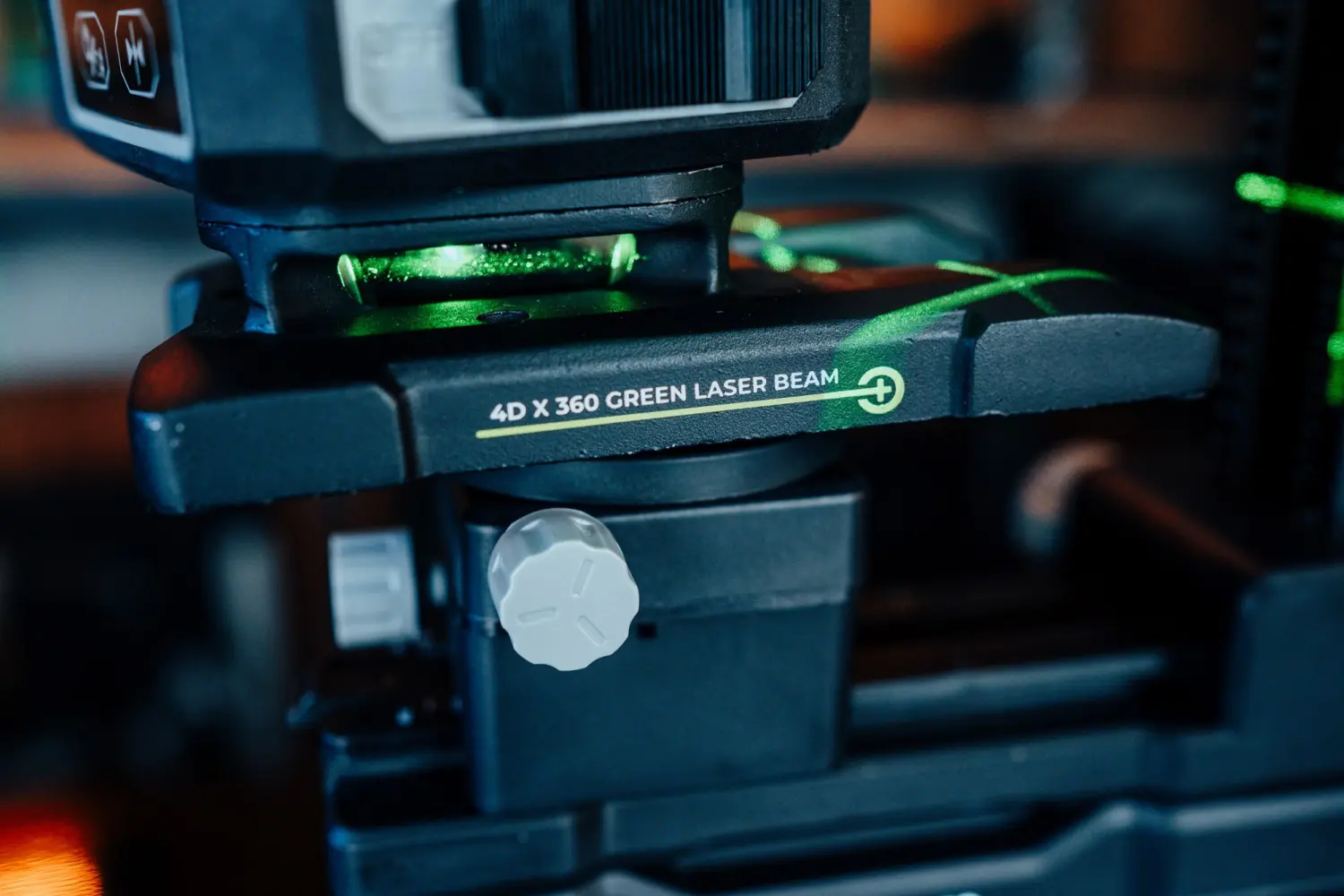

• Advanced motorized base: Allows precise laser positioning from device buttons, mobile app, or remote control for maximum convenience.

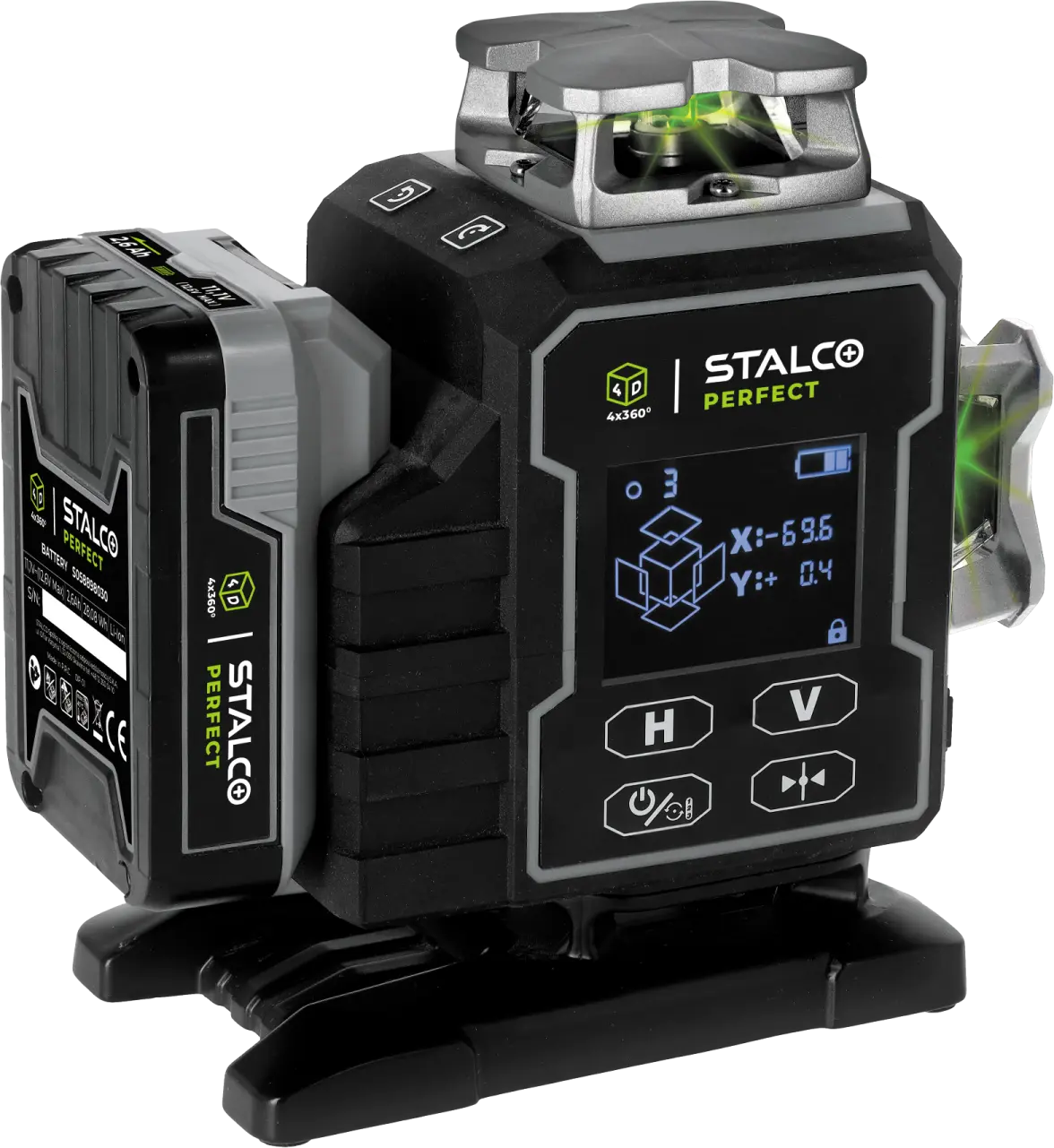

• Large display: Shows battery level, active beams, and laser tilt for full device control.

• Bluetooth & remote control: Enable remote adjustment of laser parameters and switching beams on/off, improving work efficiency.

• Beam brightness adjustment: Adapts laser power to lighting conditions for optimal visibility.

• Durable protective case: Safely stores the laser and all accessories, protecting against damage during transport.

Accessories Included:

• 1 x Laser holder

• 1 x Visibility-enhancing glasses

• 1 x Laser target plate

• 1 x 1/4” to 5/8” adapter

• 1 x USB-C cable

• 1 x Charger

• 1 x Remote control

• 2 x Li-Ion battery

• 1 x Raising platform

• 1 x Hard protective case

• 1 x Safety cable

Technical Data:

• Index: S058598012

• Laser beam: green beam

• Projection: 16 green laser lines

• Laser wavelength: 510 - 530 nm <1mW

• Reference working distance (60 - 100 LUX): ≥ 30 m

• Reference working distance with laser detector: ≥ 50 m

• Leveling/compensation range: 4° ±1°

• Leveling accuracy: ± 2 mm / 10 m

• Laser class: II

• Self-leveling time: ≤ 4 s

• Battery: 11.1 V (max 12.6 V) 2600 mAh Li-Ion

• Reference operating time: approx. 6.5 h

• Charging time: approx. 3.5 h

• Operating temperature range: -10°C – 50°C

• Storage temperature range: -25°C – 70°C

• Protection rating: IP54

• Mounting thread: 1/4", 5/8"

• Laser beam thickness: 4 mm / 10 m
