Beam Connector LB 90×60×100 mm ; 200 mm LB STALCO LB090100

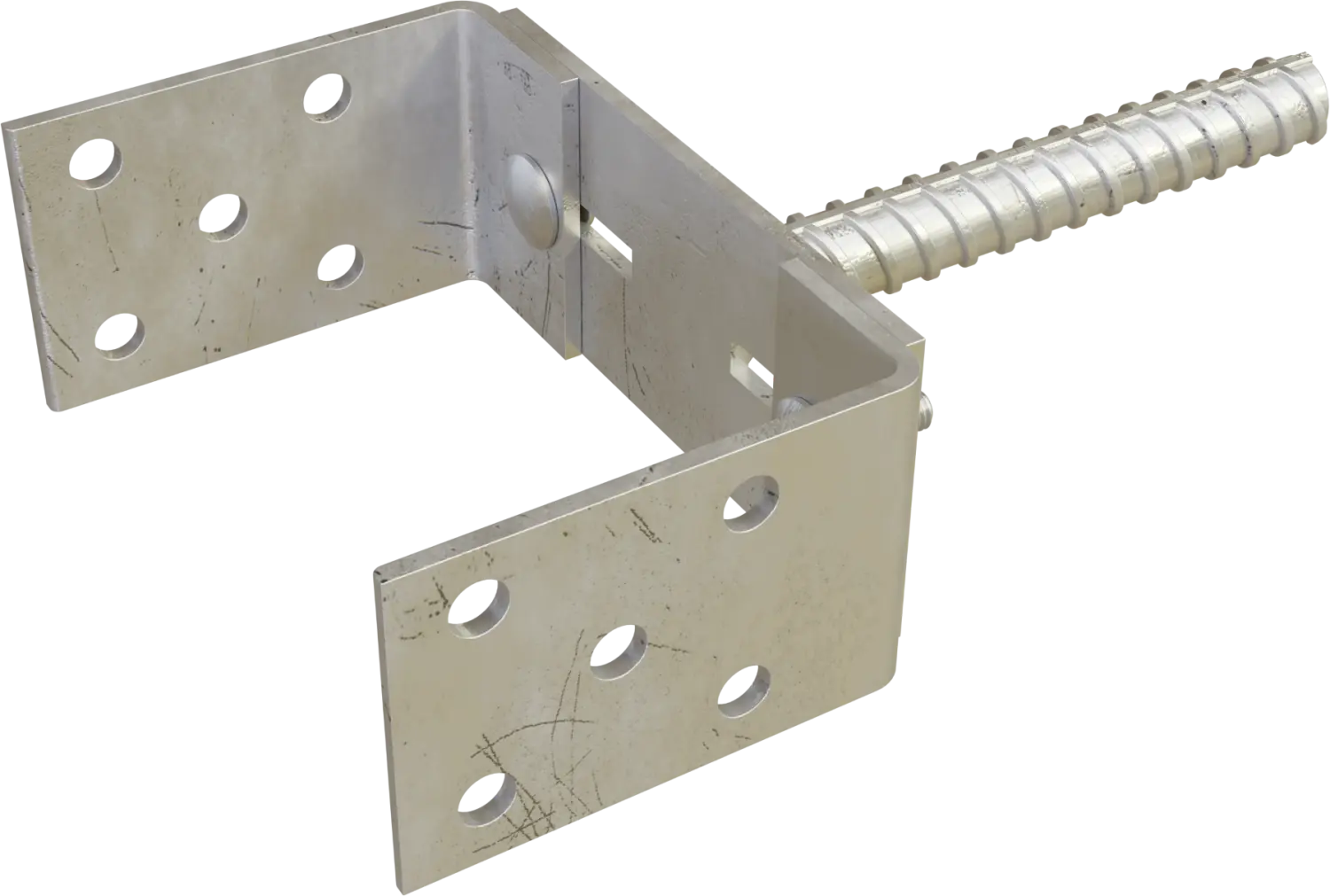

The beam connector enables mounting a wooden post to concrete and provides expansion between the wood and the ground. It is made of hot-dip galvanized low-carbon steel sheet with high strength. The connector consists of a U-shaped bracket welded to a ribbed rod embedded in concrete.

It is used for mounting post bases in concrete surfaces.

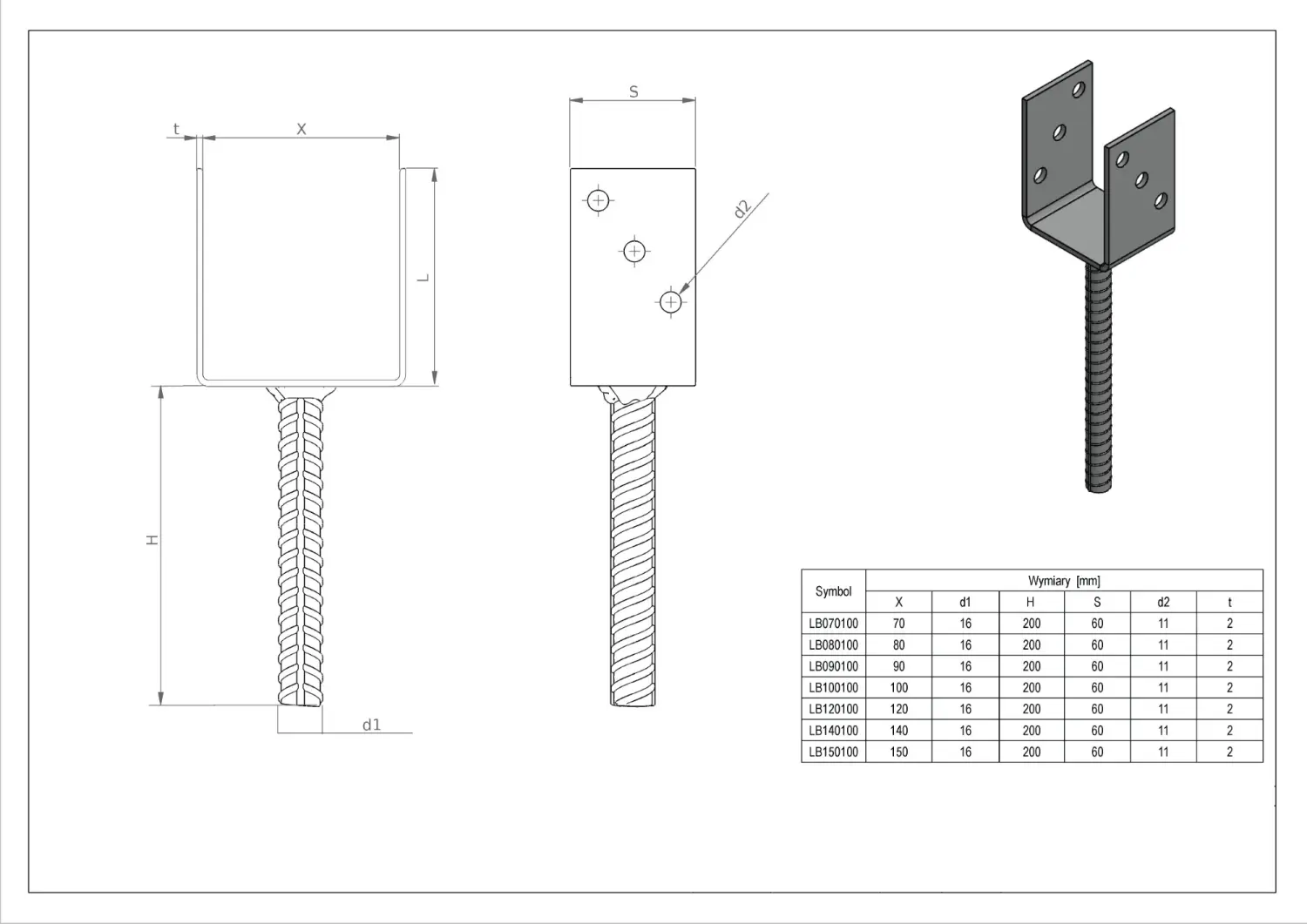

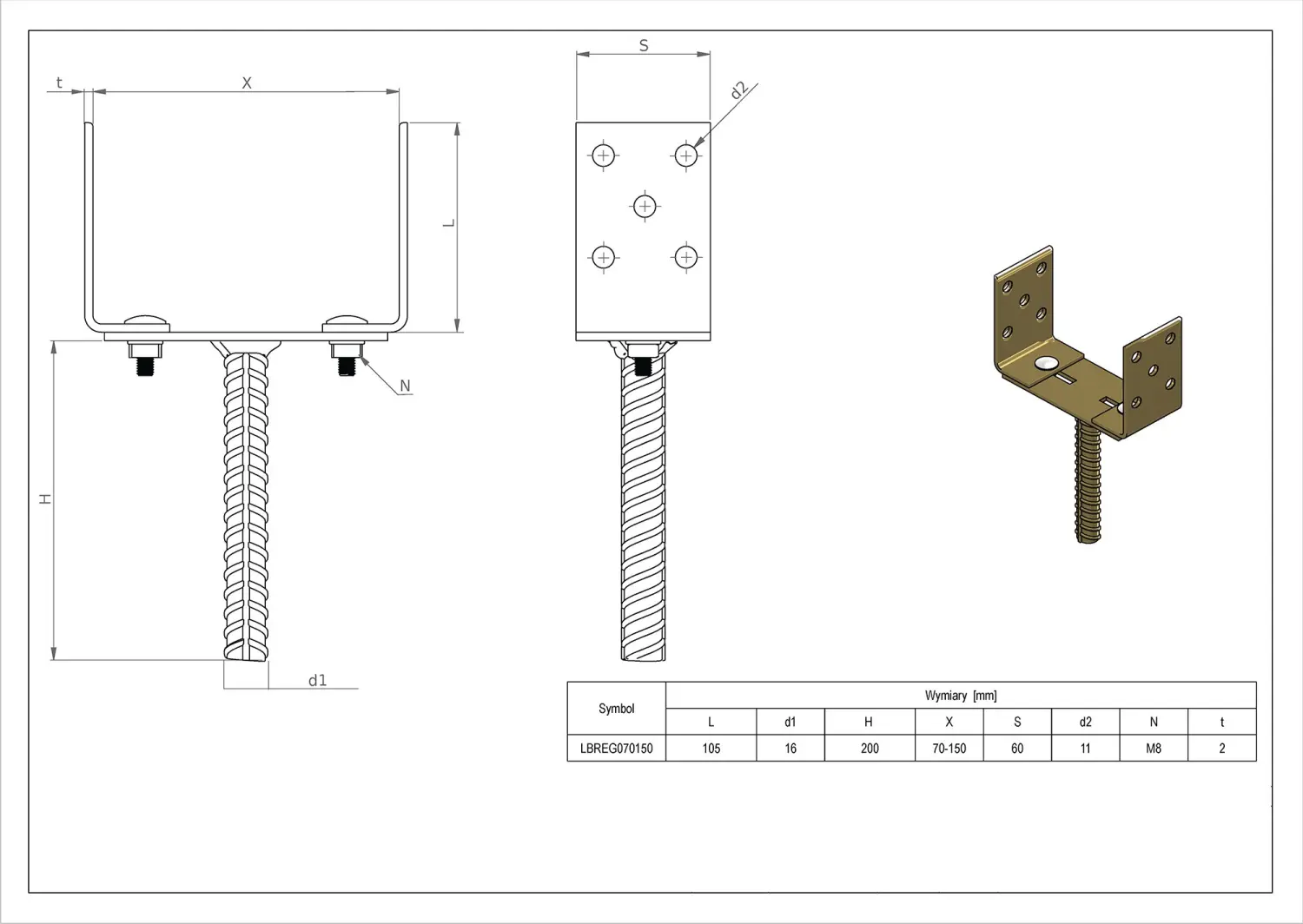

The connector’s construction ensures long-term connection stability. It is available in various widths, including open and adjustable types, allowing proper selection for the post size.

Features:

• Made of 4 mm hot-dip galvanized steel sheet

• Provides wood expansion from the ground, allowing air circulation and moisture drainage

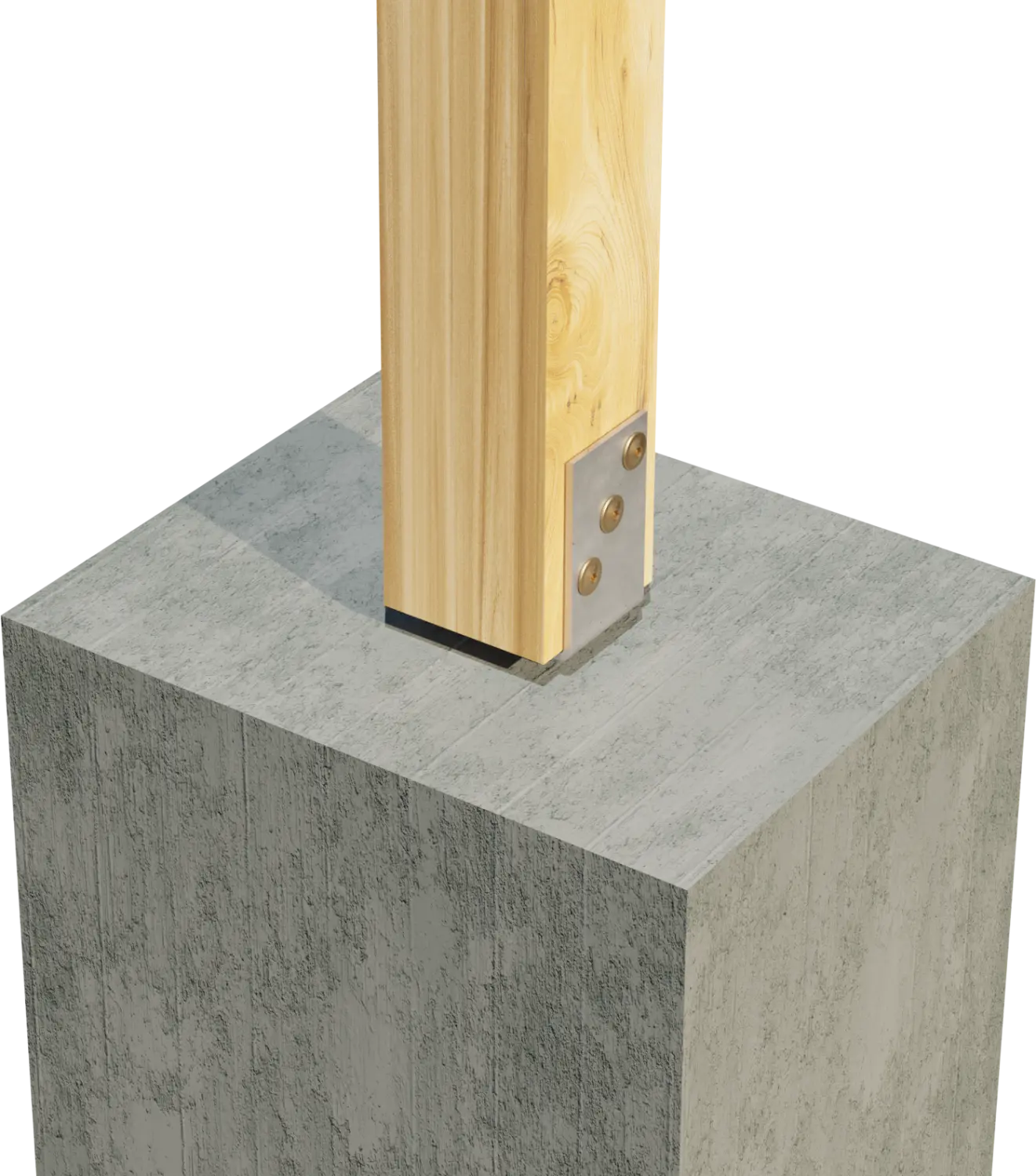

• Ensures stable, secure mounting of wooden posts in garden architecture to concrete

• Numerous mounting holes ensure strong fastening to wood

Material:
Hot-dip galvanized steel sheet.

Application:
Designed for mounting wooden structures.
