Diamond Drill with Micro-Impact DBP202 STALCO PERFECT S-98601

The DBP202 Diamond Drill with micro-impact is a versatile tool for wet and dry drilling in concrete, reinforced concrete, lightweight concrete, and crushed limestone. Perfect for construction and installation work, such as drilling for HVAC, air conditioning, and electrical installations. The dual spindle thread system allows mounting of various drill bits for different tasks.

• Wet and dry operation: Can drill dry with micro-impact or wet using the water connection for dust-free operation.

• Precise performance control: Two-speed gearbox and selectable operation modes (standard or micro-impact) allow adjusting performance for material type.

• Ease of use: Soft start prevents jolts at startup. Safety clutch protects both the user and the tool.

The ECS function ensures stable rotational speed even under changing loads. Dust-free work is possible with vacuum connection. Lightweight design increases comfort during manual drilling without a stand.

Technical Data:

• Rated power: 2200 W

• Voltage: 230V

• Frequency: 50-60 Hz

• Current: 10A

• Max drilling diameter (manual): 162 mm

• Max drilling diameter (with stand): 202 mm

• No-load speed (gear 1/2): 0–640 / 0–1420 rpm

• No-load impact frequency (gear 1/2): 0–15,360 / 0–34,080 bpm

• Drilling diameter (gear 1/2): 202 / 102 mm

• Spindle thread: 1-1/4" UNC & 1/2"G

• Protection class: II

• Compatible stand: DRP202

• Weight: 6.5 kg

• Cable length: 3 m

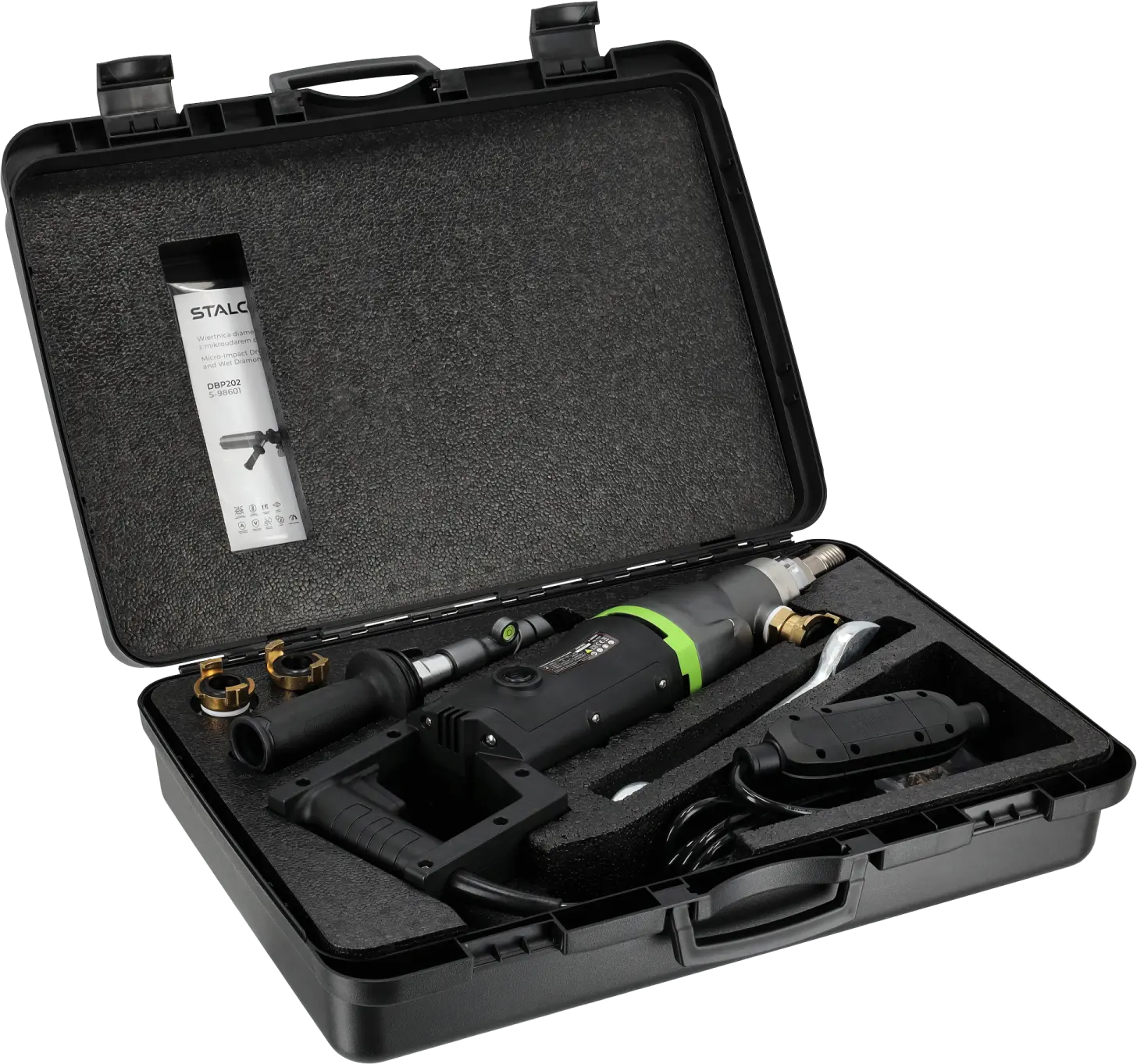

Included Accessories:
Front auxiliary handle, quick water connection, quick vacuum connection, 37 mm & 42 mm wrenches, replaceable carbon brushes, instruction manual
