Frame expansion plug for various substrates TXK sleeve: ø8x140mm, screw: ø5.5x145mm (5907180855305)

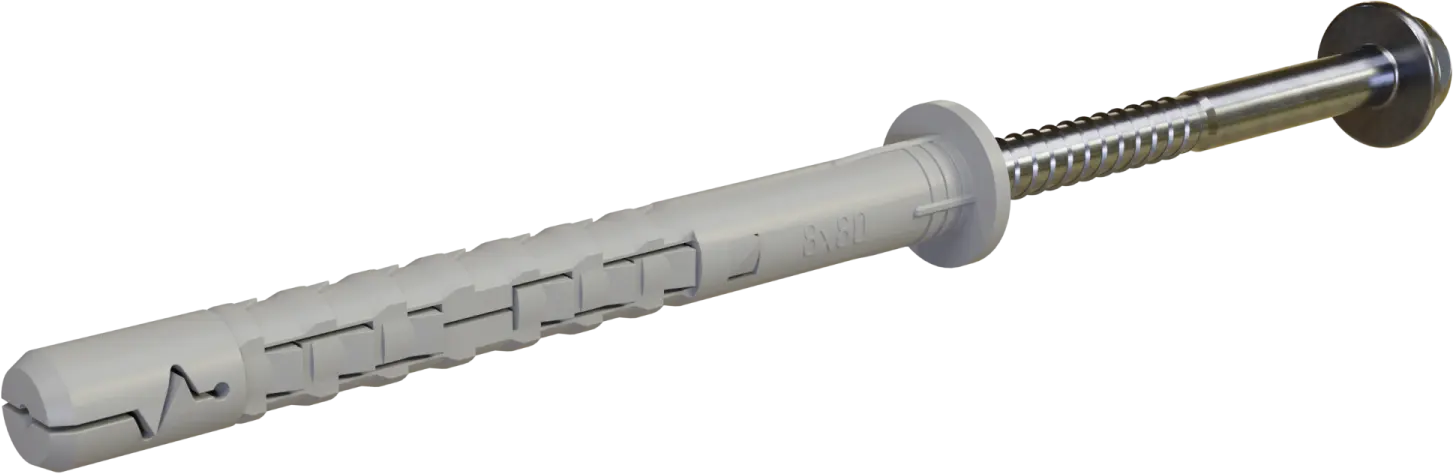

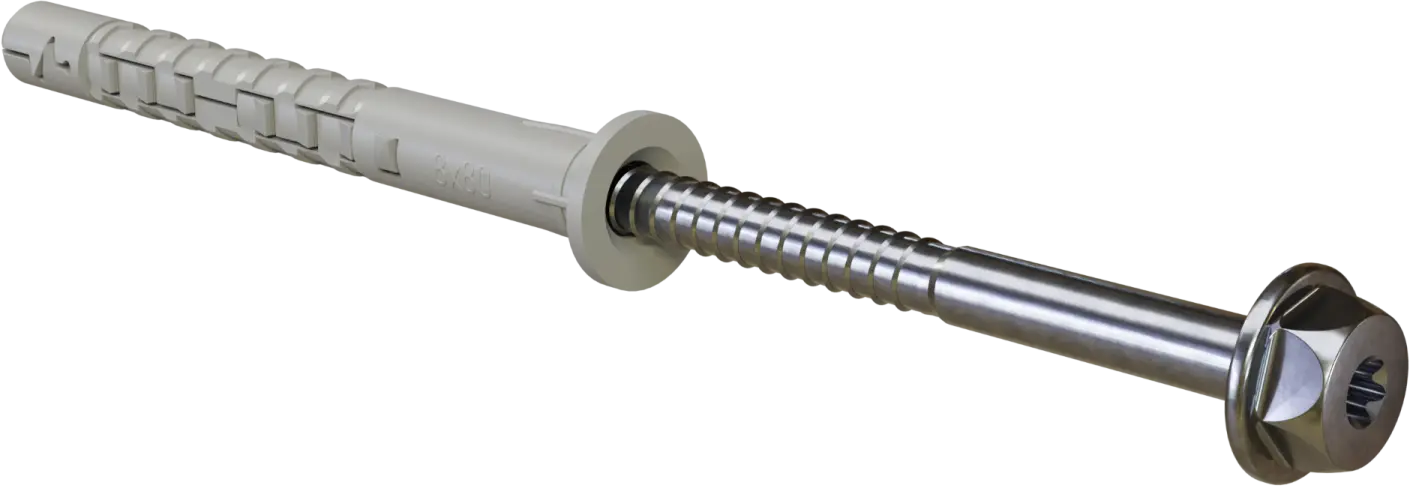

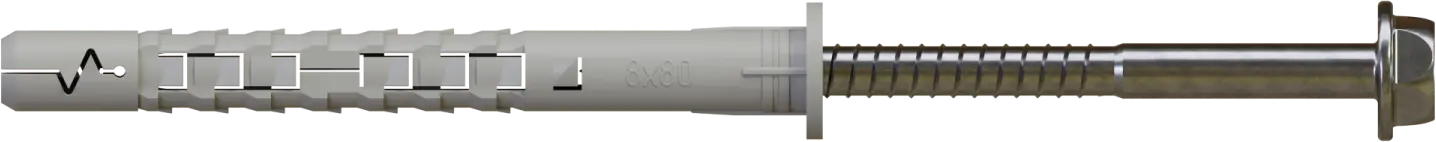

The TXK frame expansion plug is a connector designed for mounting in all types of building substrates – solid and perforated. It consists of a polyamide sleeve and a zinc-plated steel screw. The screw has a hexagonal head with a TORX socket.
It can be embedded in concrete, solid and perforated brick, aerated concrete blocks, and perforated blocks. It is available in several sizes with diameters of 8 and 10 mm, and lengths ranging from 60 to 300 millimeters.
FEATURES:

• jacket made of nylon
• Frame plug with collar for fastening in all substrate categories according to ETAG 020 (A, B, C, D)
• Screw made of zinc-plated steel.
• Hexagonal screw head with TORX socket.
• Many size variants to choose from make it easier to match the plug to your needs.

PRODUCT MATERIAL:
jacket made of high-quality polyamide (nylon), galvanized steel screw with a hexagonal head with TORX socket.

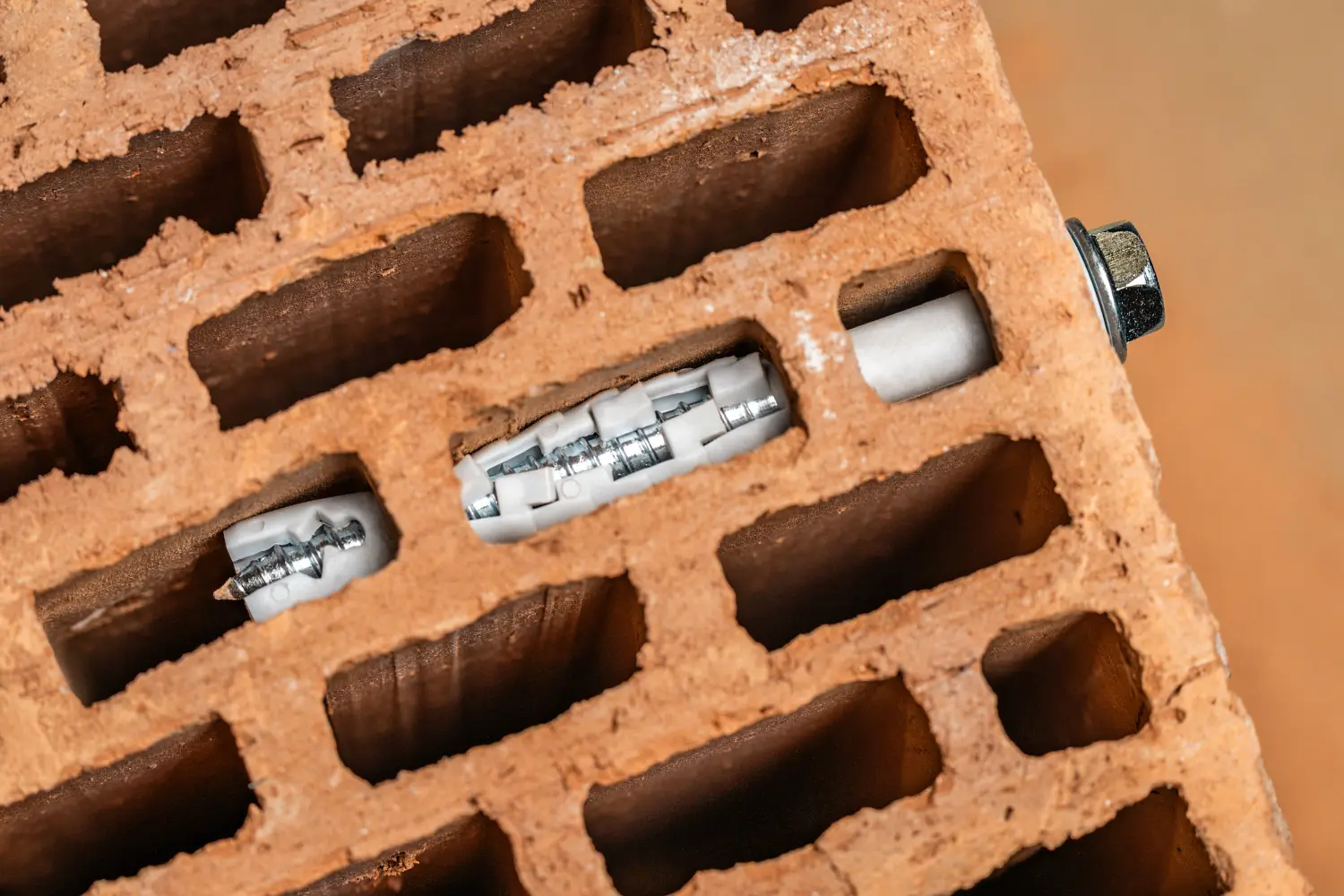

APPLICATION: For solid building materials such as: regular concrete, aerated concrete, solid ceramic brick, solid silicate brick. Also for incomplete materials such as: perforated silicate brick, perforated brick, ceramic block, and silicate block.
The TXK plastic-to-metal expansion connectors are designed for non-structural, multi-point fastenings of statically loaded building elements in substrates made of solid and hollow materials.
