Frame expansion plug for various substrates TXS sleeve: ø8x100mm, screw: ø5.5x105mm (5907180854667)

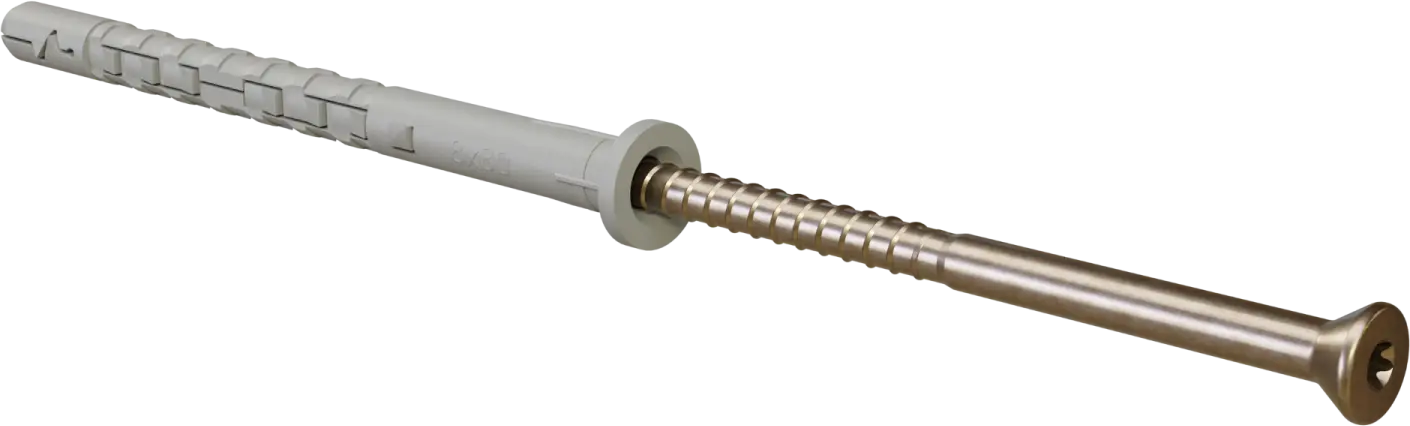

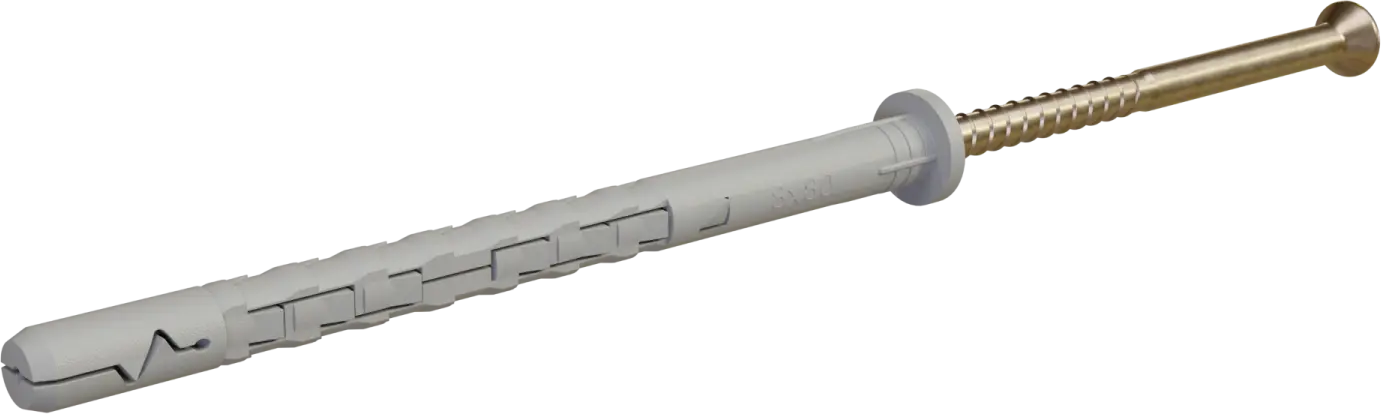

The TXS frame expansion plug is a connector designed for mounting in all types of building substrates – solid and perforated. It consists of a polyamide sleeve and a zinc-plated steel screw. The screw has a countersunk head with a TORX socket that is flush with the fastener.
It can be embedded in concrete, solid and perforated brick, aerated concrete blocks, and perforated blocks.
It is offered in several sizes with diameters of 8 and 10 mm, and lengths ranging from 60 to 200 millimeters.
FEATURES:

• Sheath made of nylon
• Frame plug with a countersunk head for use in all substrate categories according to ETAG 020 (A, B, C, D)
• Screw made of zinc-plated steel.
• Hexagonal screw head with a TORX socket.
• Many dimensional variants to choose from make it easier to match the plug to your needs.

PRODUCT MATERIAL:
Sheath made of high-quality polyamide (nylon), steel screw, electro-galvanized, with a countersunk head.
APPLICATION:
For building materials such as: regular concrete, autoclaved aerated concrete, solid ceramic brick, and solid silicate brick. They also work well in materials with a non-uniform structure, such as: silicate brick with holes, perforated brick, ceramic block, and silicate block.
TXK plastic-to-metal expansion connectors are designed for installation in solid, as well as structural and incomplete materials. They are used for non-structural, multi-point fastenings of statically loaded building elements.
