LSB type "B" steel anchor 10x80 (5907180850430)

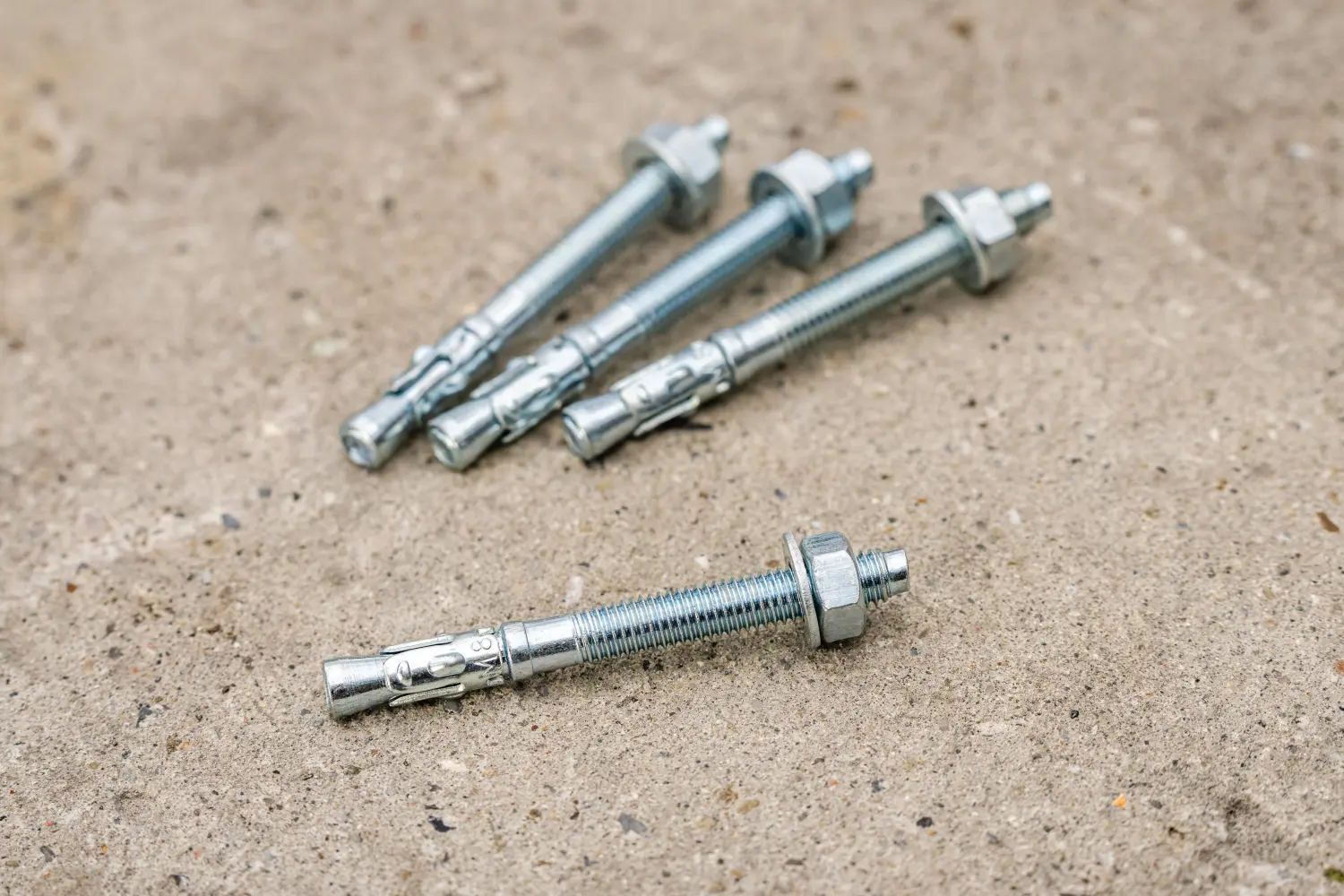

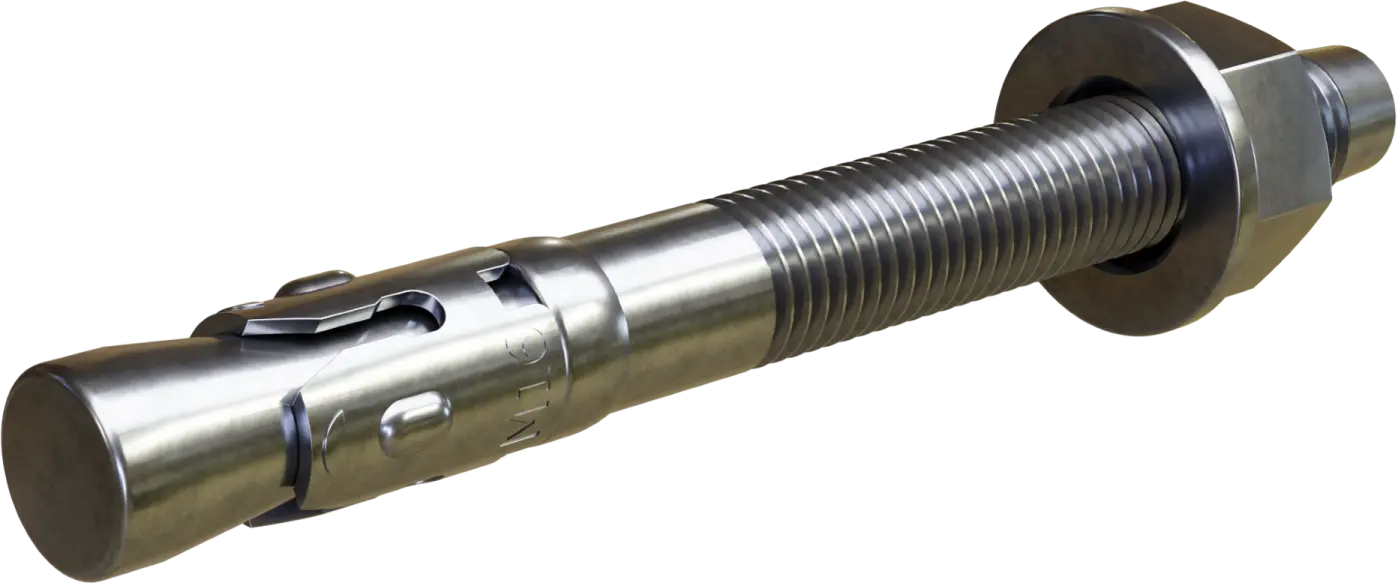

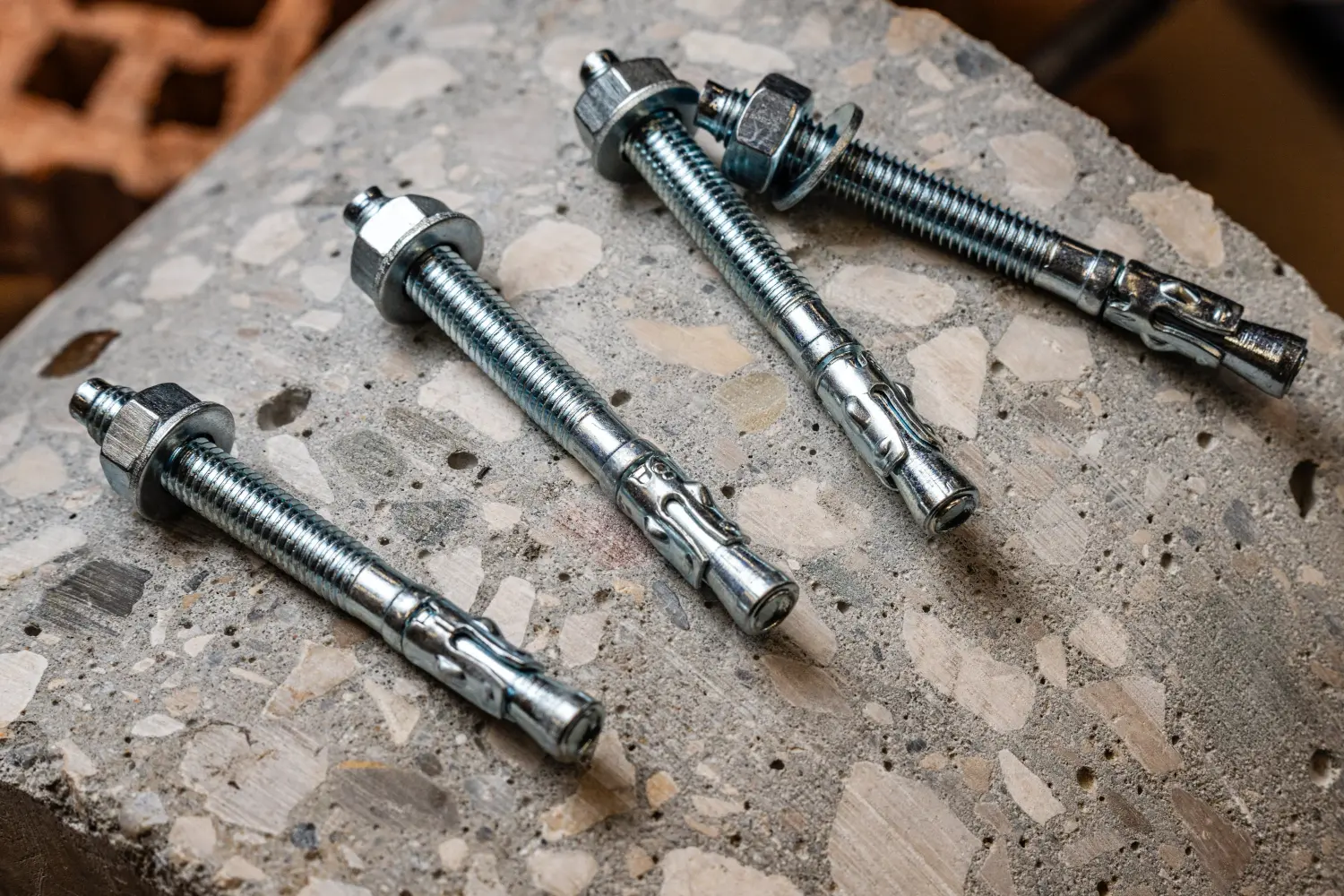

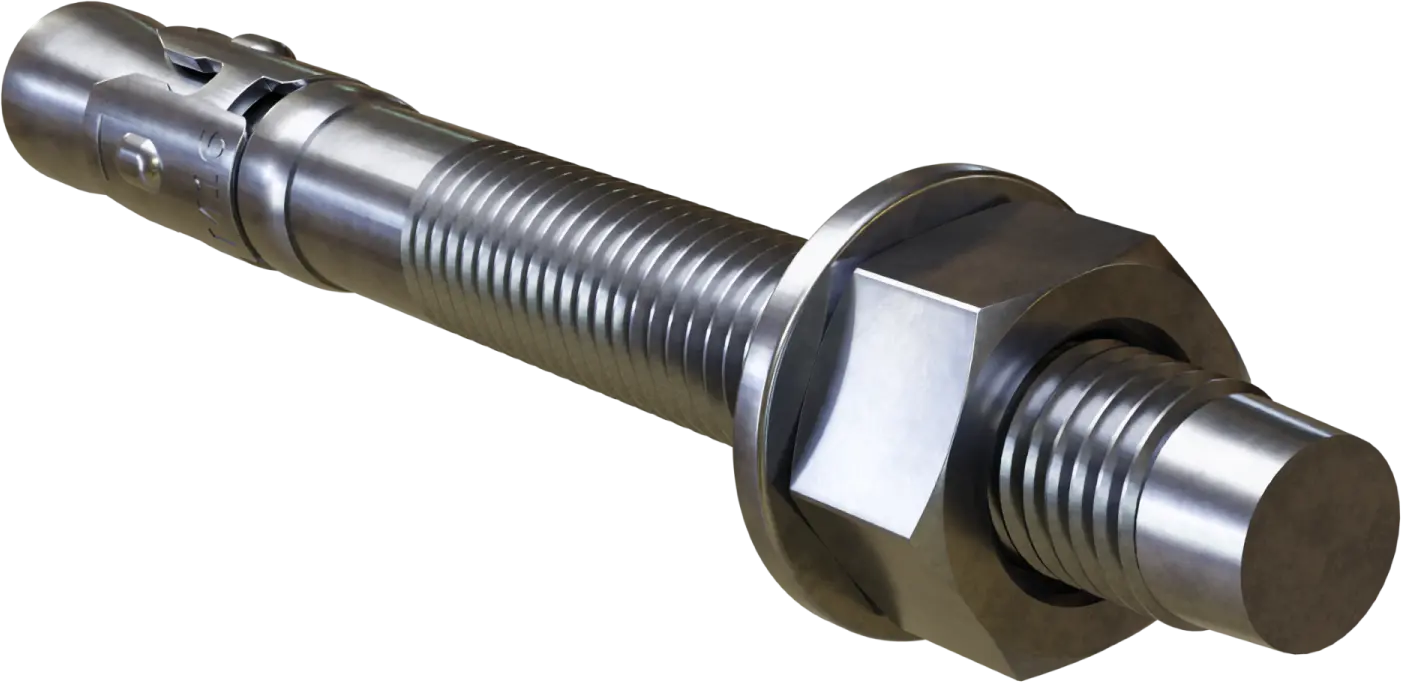

The steel band anchor is a product used for fastening light and medium-sized metal structures to uncracked concrete. The anchor consists of a threaded pin with a washer, a nut, and a washer. All components are made of electro-galvanized carbon steel.
The anchor is used in various assembly tasks, primarily in construction and industry. Its design allows for quick installation by hammering in and then tightening the nut, facilitating precise application. The cold-formed steel from which it is made prevents the pin from cracking during driving and tightening. A wide range of diameters and lengths allows for their appropriate selection.
FEATURES:

• Carbon steel is used for the production of the anchor, additionally protected against corrosion by galvanizing.
• Push-through installation speeds up work.
• Drilling and installation takes place directly through the fastened element, which significantly speeds up the installation process.
• The anchor's design ensures high load-bearing capacity in non-cracked concrete.
• The product is offered in many diameters and dimensions.

PRODUCT MATERIAL:
Galvanized steel.
APPLICATION:
Product for embedding in non-cracked concrete of min. C20/25.
Example of use:

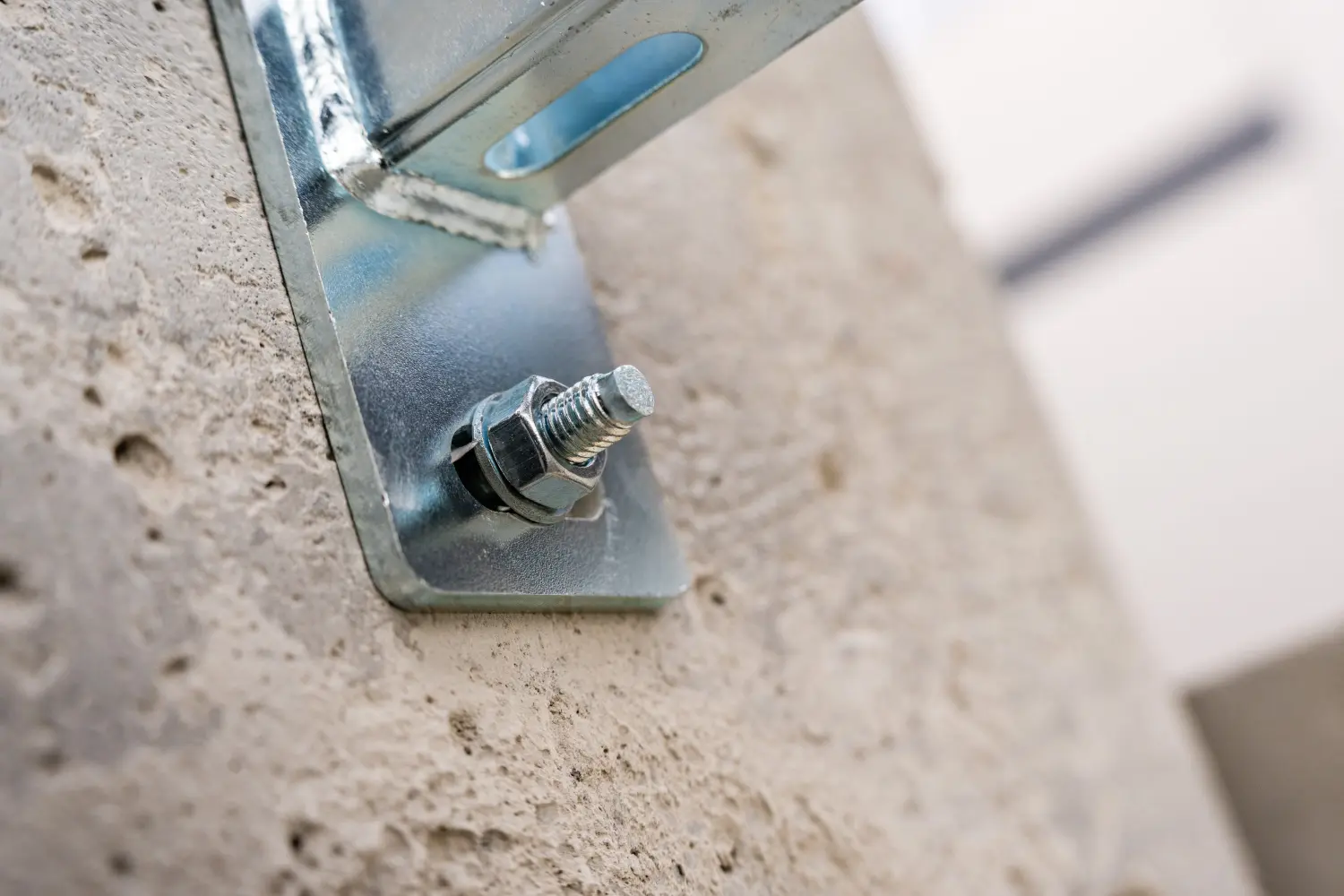

The anchor can be used for fastening: storage racks, brackets, barriers, handrails, installations, chairs and other metal elements.
