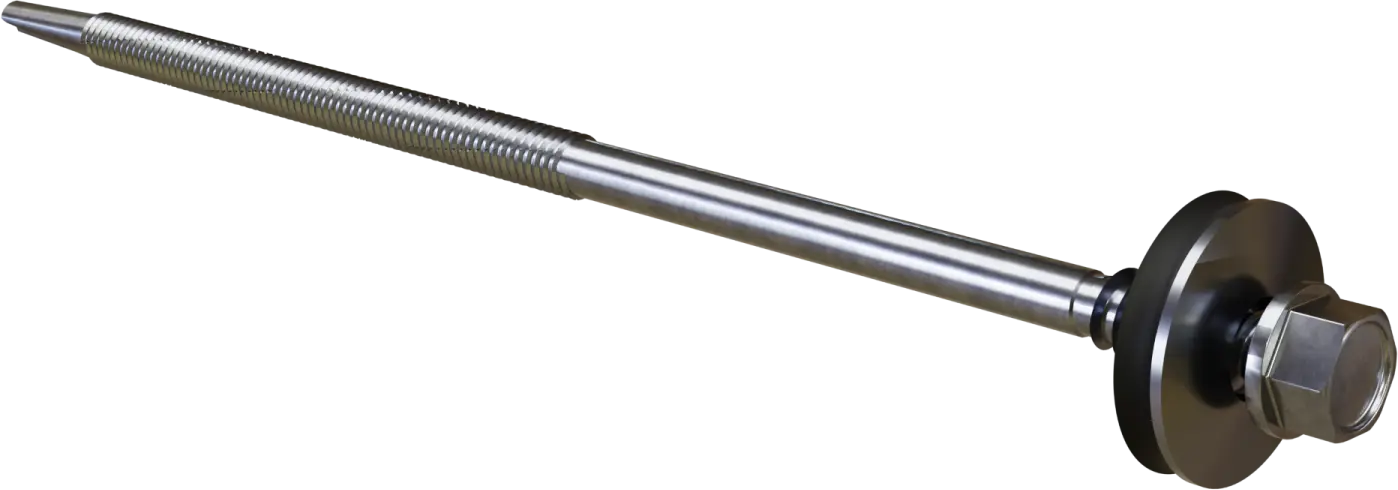

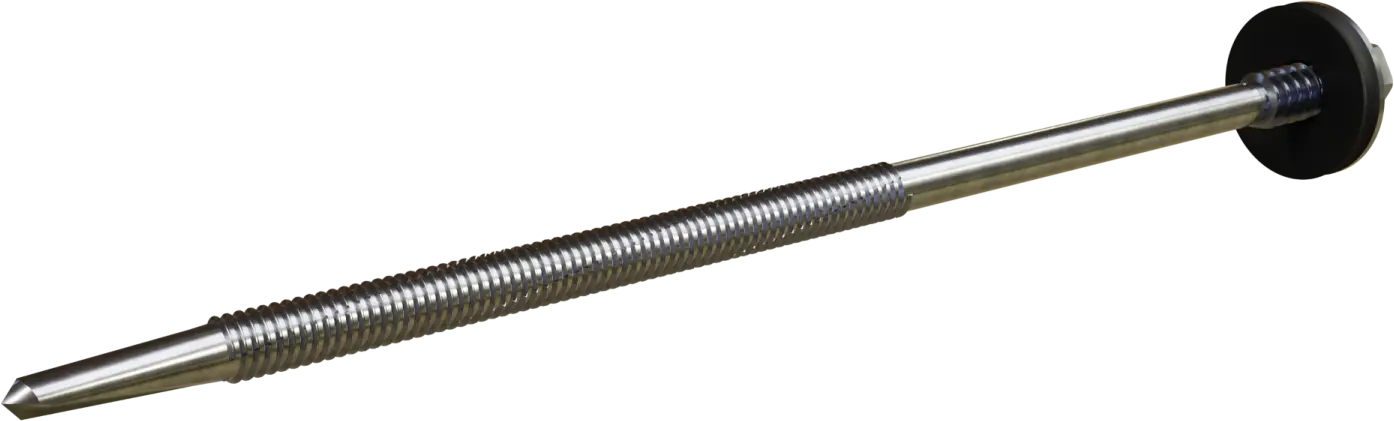

Self-drilling screw for WSPW sandwich panels max. board thickness: 100mm (5907180850331)

Self-drilling screw for sandwich panels. The entire screw and washer are made of steel, additionally protected by a layer of zinc plating. The washer contains an additional EPDM rubber seal.
The self-drilling screw is designed for the installation of sandwich panels. Its design allows for fastening the panel to a steel structure. The screw can be effectively screwed into structures up to 12 mm thick.
The screw is available in a variety of lengths, allowing it to be precisely adjusted to the panel's thickness.
FEATURES:

• carbon steel screw with very good strength parameters, electro-galvanized
• EPDM sealing washer
• hexagonal head and self-drilling tip ensure precise and quick fastening of sandwich panels
• screws available in many sizes, adapted to the panel thickness
• additional widened thread under the head ensures tight and secure fastening

PRODUCT MATERIAL:
Screw and washer made of electro-galvanized steel, with additional EPDM rubber in the washer.
APPLICATION:
Self-drilling screw used for fastening sandwich panels to steel structures. It has a drilling capacity of up to 12.0 mm.
This system is used for the installation of sandwich panels. It can be used for sandwich panels with a maximum thickness of 225 mm.
