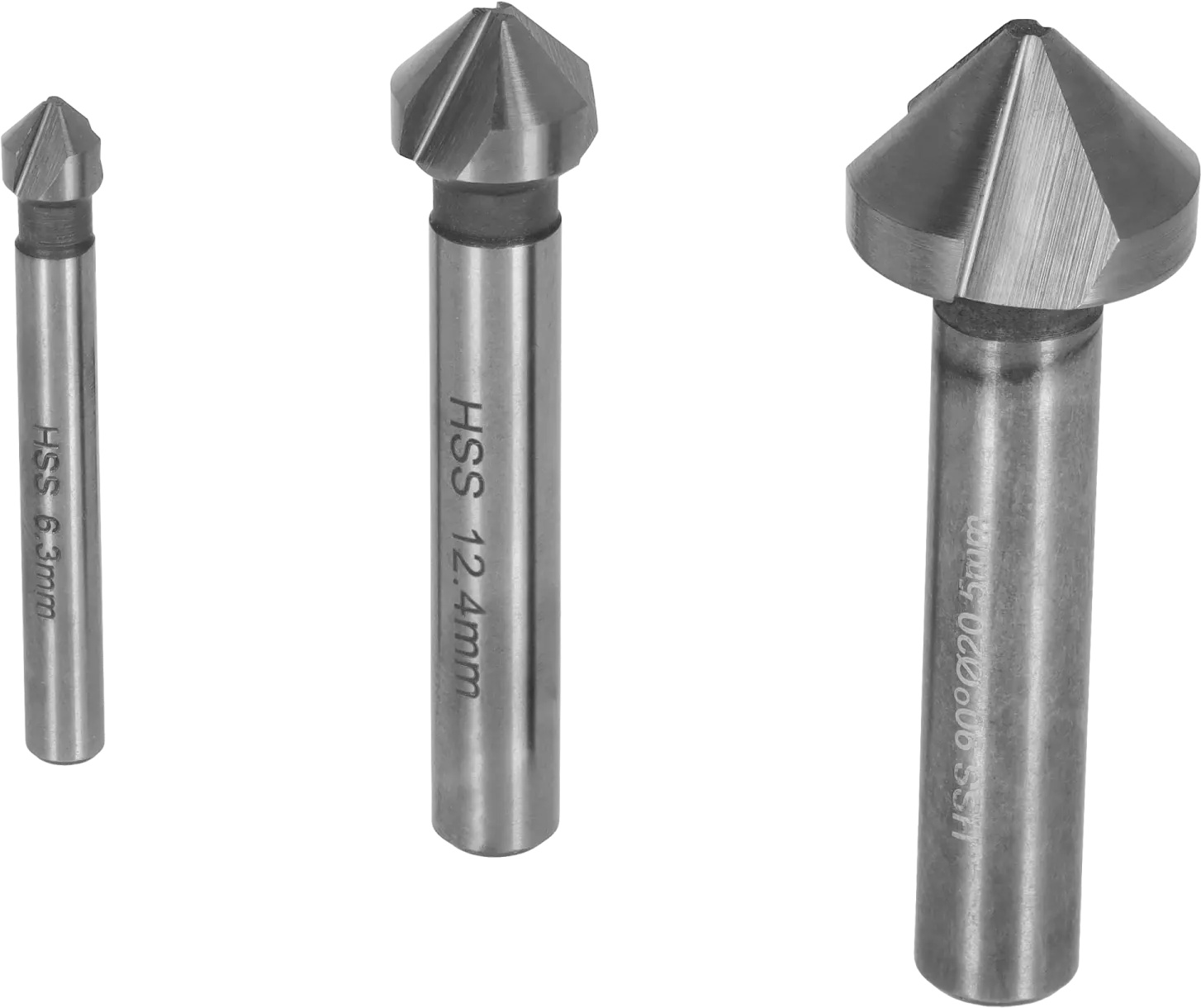

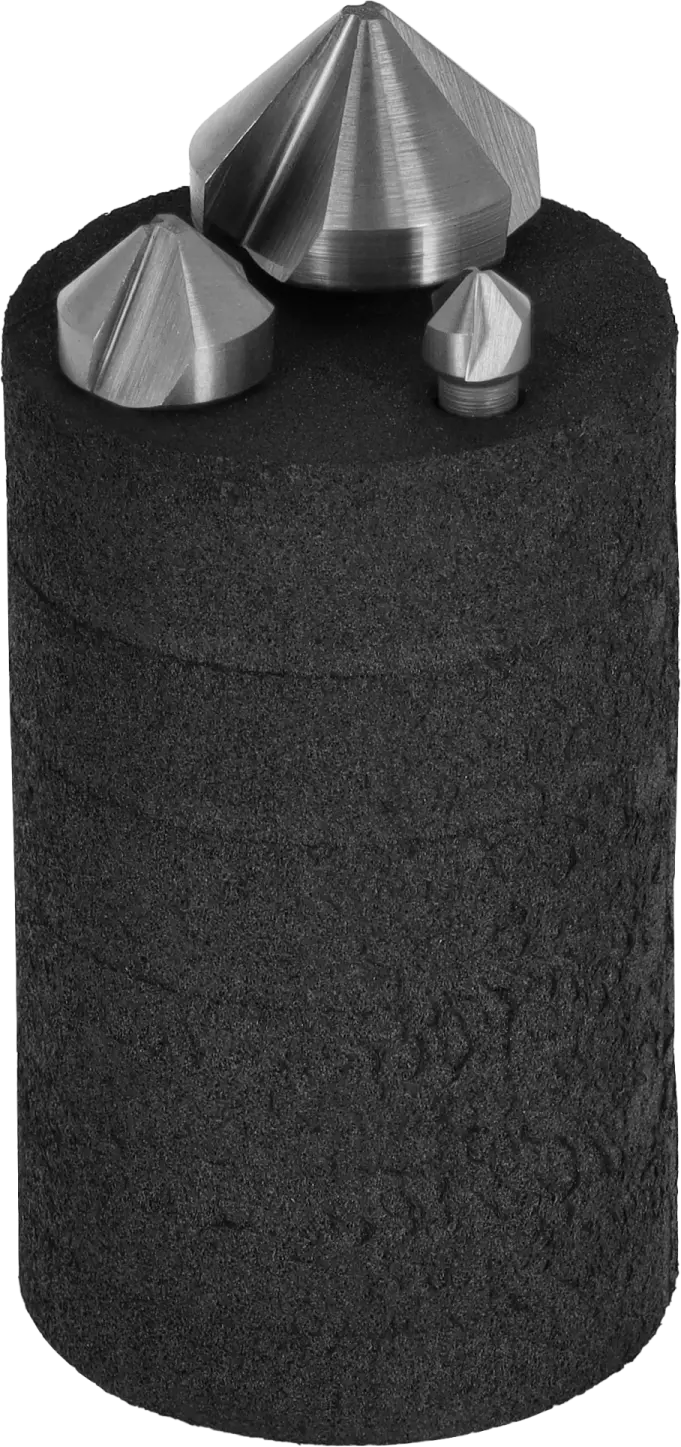

Set of 3 HSS Countersinks (5904012136113)

For machining and making holes in metal components, you may need an HSS countersink. The cylindrical shank allows for installation in drills, screwdrivers, or milling machines. It is equipped with a triple-blade tip at a 90-degree angle. It allows for countersinking and deburring holes while operating at low speeds. Made of HSS high-speed steel, it can be used for cutting all types of metals, such as steel, cast iron, and non-ferrous metals. The STALCO PERFECT HSS countersink ensures highly precise work. It is offered in three variants, each available in a set. Each differs in the cone dimensions and shank diameter. All three pieces are sure to find use in professional locksmith and repair shops.
FEATURES AND ADVANTAGES
Ground, sharp edges speed up work and shorten the time needed to complete it.
An ideal product for working with metals, wood and plastics.
Enables precise countersinking and finishing of holes.
Long product life allows for cost reduction.
All necessary sizes in one package ensure high work comfort.
FEATURES:

• Countersinks DIN 335/ 90 ° High Speed ​​Steel (HSS)
• high-alloy steel,
• mainly used for the production of cutting tools

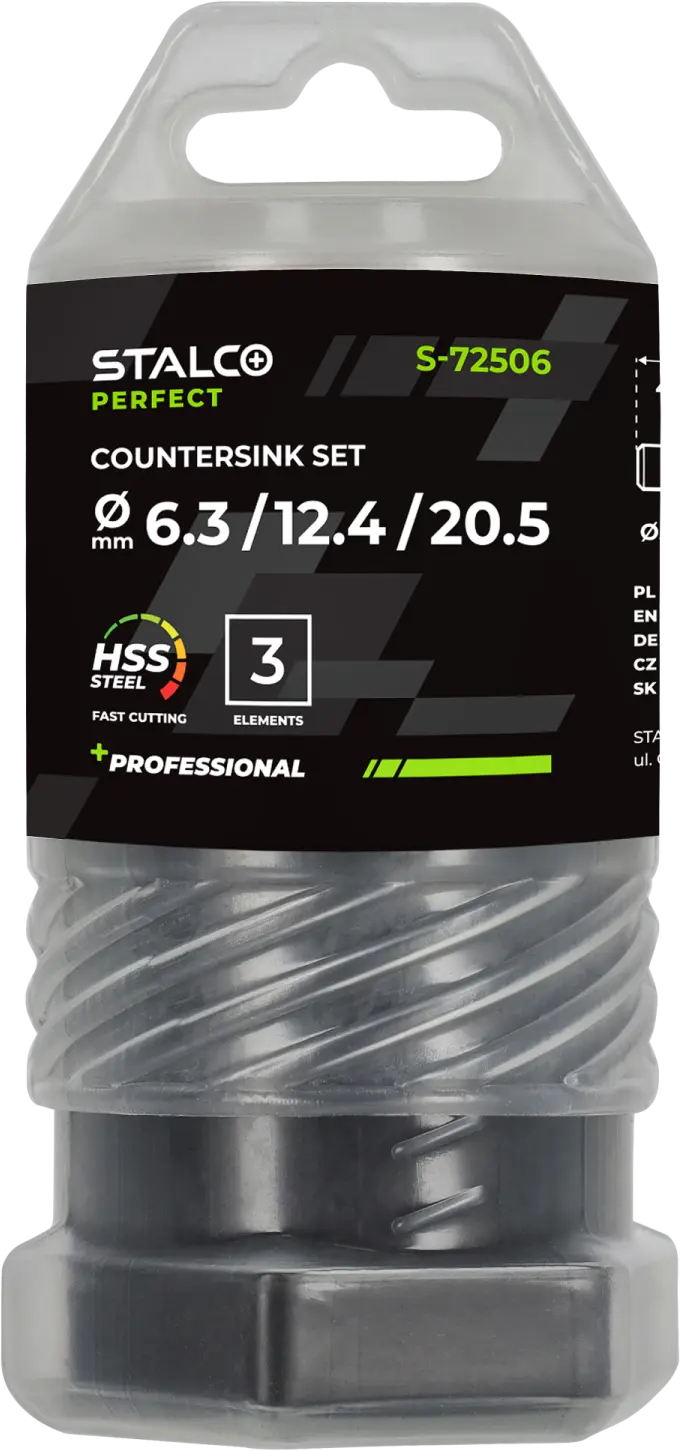

• Set of countersinks S-72501, S-72503, S-72505

PRODUCT MATERIAL:
HSS steel
PRODUCT APPLICATION:
Drilling holes in steel, plastics, wood.
APPLICATION - MATERIAL
-Steel {N/mm2) < 900, other non-ferrous metals, plastics
-Aluminum - use without TiN coating
APPLICATION - USE
-HSS countersinks are used
on sheet metal, pipes, profiles, and more.
-Grinding oil or compressed air can be used as cooling and lubricating agents.
TECHNICAL DATA:
Countersink;
Stroke;
Handle;
fi 6.3 mm;
45 mm;
fi 5 mm;
fi 12.4 mm;
56 mm;
fi 8 mm;
fi 20.5 mm;
63 mm;
fi 10 mm
FEATURES
DIN 335, 90-degree countersink designed for professional machining of holes at an angle of 90 degrees. Suitable for enlarging, countersinking and other frontal machining of holes,
in particular when making sockets for countersunk screws.
It is made in accordance with the DIN 335 dimensional standard from special HSS high-speed steel. Suitable tool drives: hand drill, column drill.
