Single sleeve expansion anchor ∅8x65mm SLR108065 SŁR - 1 - 8X65 - - STALCO

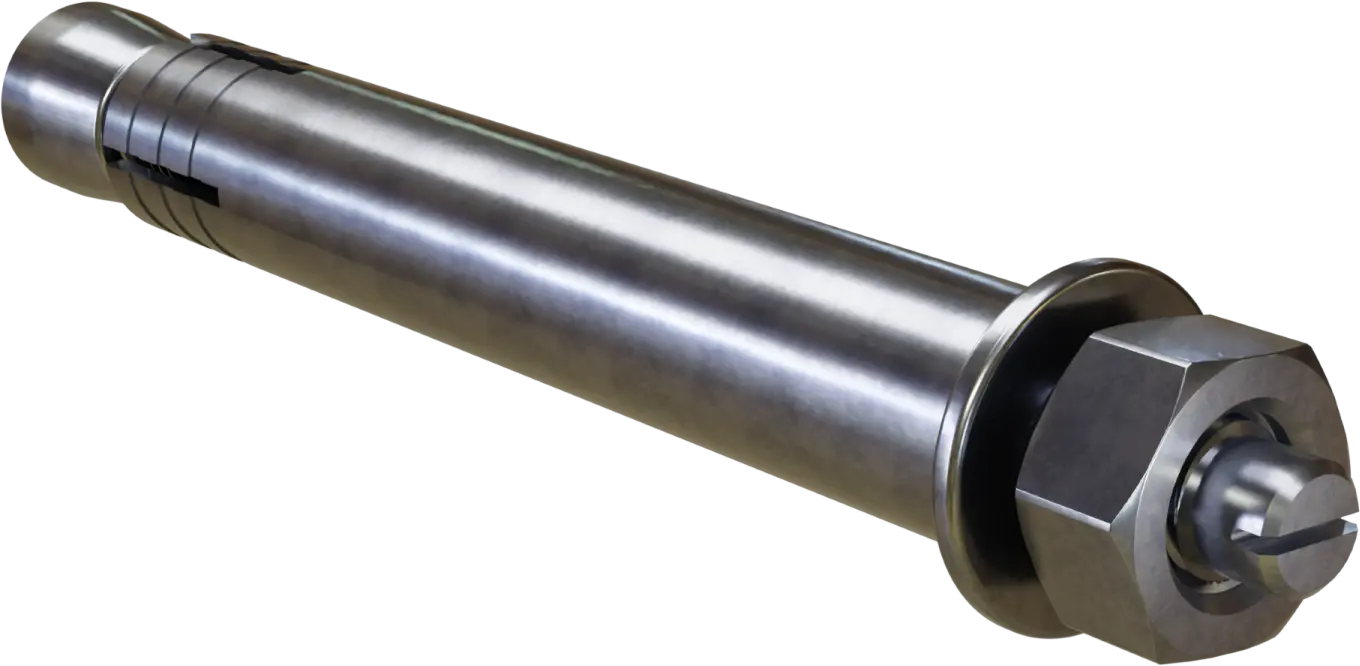

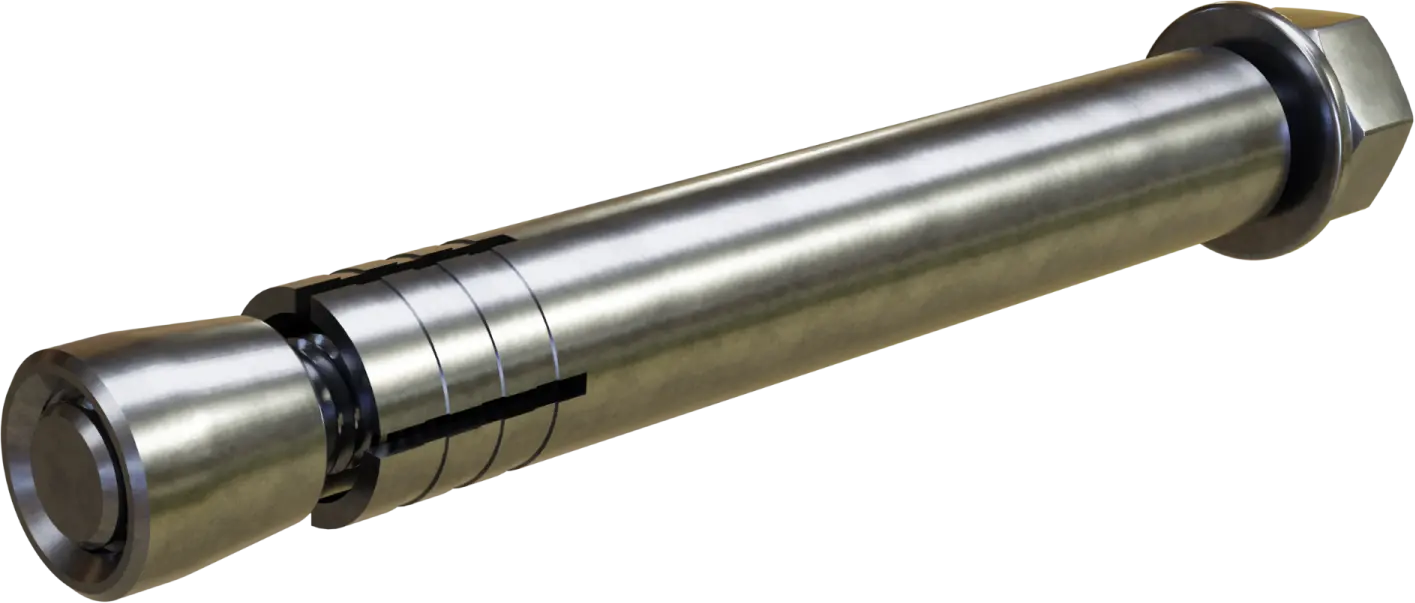

The SÅR single-expansion steel anchor is a product used for fastening light and medium-sized metal structures inside buildings. The anchor consists of a threaded pin, expansion sleeve, nut, and washer. All components are made of electro-galvanized carbon steel. The anchor is used in various assembly tasks, primarily in construction and industry. Its design allows for quick installation by hammering in and then tightening the nut, facilitating precise application. The cold-formed steel from which it is made prevents the pin from cracking during driving and tightening. A wide range of diameters and lengths allows for appropriate selection.
FEATURES:

• all elements are made of steel protected against moisture with galvanized zinc
• the shape of the steel sleeve ensures the stability of the fastening and affects its durability
• the hexagonal nut ensures quick installation

PRODUCT MATERIAL:
All elements of the anchor, i.e. the sleeve, pin, cone, washer and nut, are made of galvanized steel.
APPLICATION:
Anchor designed for mounting in solid materials such as: regular concrete C20/25, solid ceramic brick class 15, solid silicate brick class 15.
Example of use:
The mounting element is used for mounting wooden profiles, skirting boards, mounting brackets for sanitary and electrical installations, and structural elements used in interior drywall technology. The element can be used for mounting structural accessories with a high and medium dead weight, and even with variable loads.
