SØR 2 SLR2 double-expansion steel anchor SØR 2 - 20X180 (5906365346928)

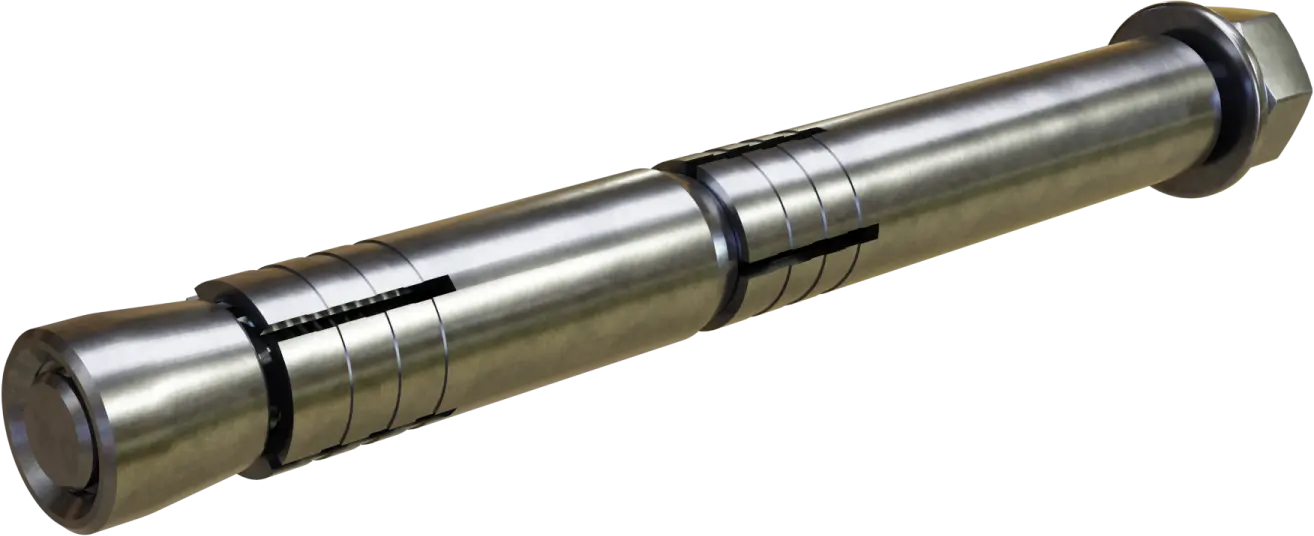

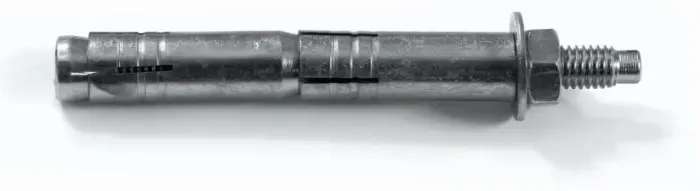

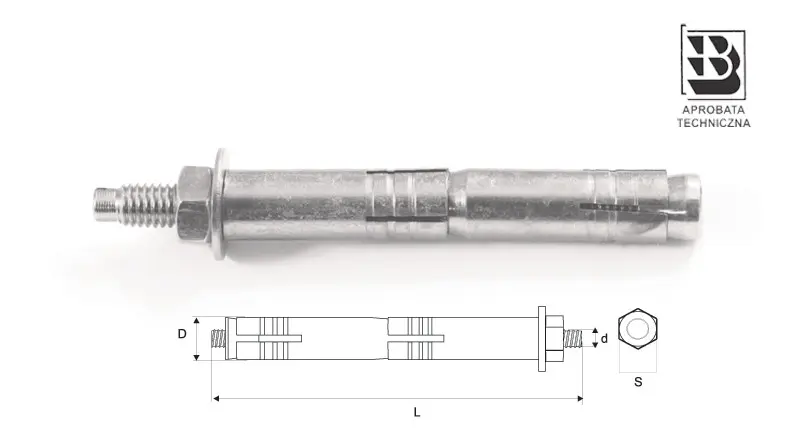

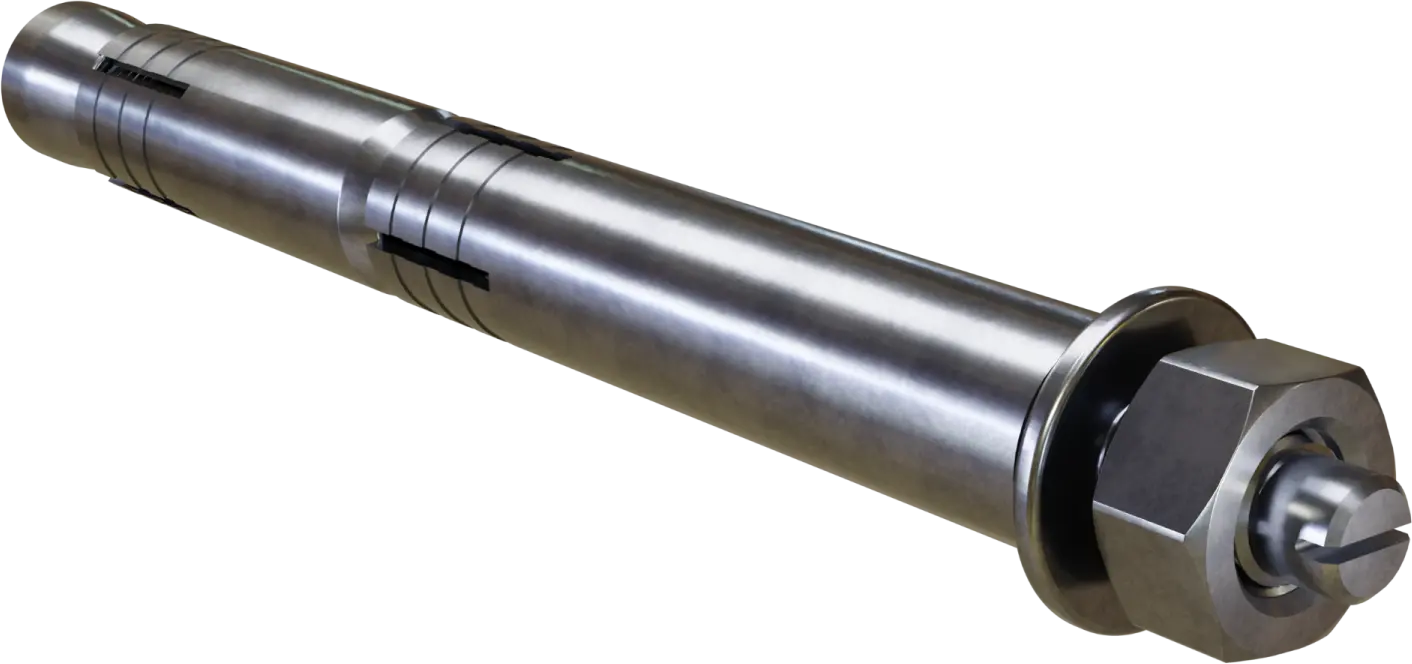

The SÅR 2 double-expansion steel anchor is a product used for fastening light and medium-sized metal structures inside buildings. The anchor consists of a threaded pin, expansion sleeve, nut, and washer. All components are made of electro-galvanized carbon steel. The anchor is used in various assembly tasks, primarily in construction and industry. Its design allows for quick installation by hammering in and then tightening the nut, facilitating precise application. The cold-formed steel from which it is made prevents the pin from cracking during driving and tightening. A wide range of diameters and lengths allows for appropriate selection.
FEATURES:

• all parts of the anchor are made of steel and protected with a layer of zinc
• the sleeve divided into two parts ensures stable mounting of the plug inside the holes
• the anchor is finished with a hexagonal nut
• the anchor is offered in several dozen dimensional variants

PRODUCT MATERIAL:
The sleeve, pin, cone, washer and nut are made of electro-galvanized steel.
APPLICATION:
Mounting kit designed for solid materials such as: regular concrete C20/25.
Example of use:
Anchor used for mounting steel structures and accessories with a significant dead weight and variable load, i.e. structural elements, handrails, balustrades, gates, door frames, installation pipes, mounting rails, furniture, etc.
