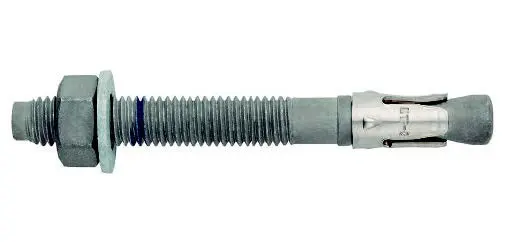

Steel anchor type G LSG 12 x 110 mm (5904012170247)

The LSG steel band anchor is used for fastening light and medium-sized metal structures to cracked and non-cracked concrete. The anchor consists of a threaded pin, a washer, a nut, and a washer. All components are made of carbon steel with an Atlantis coating for increased corrosion resistance, while the band is made of A4 stainless steel. The anchor is used in various installation applications, primarily in construction and industry. Its design allows for quick installation by hammering in and then tightening the nut, facilitating precise application. The cold-formed steel from which it is made prevents the pin from cracking during driving and tightening. A wide range of diameters and lengths allows for appropriate selection.
FEATURES:

• pin made of carbon steel covered with Atlantis coating ≥40µm EN 13811, clip made of stainless steel A4, nut DIN 934 class 6
• increased corrosion resistance thanks to the use of Atlantis coating ≥40µm
• fixings in substrates such as: ordinary reinforced and unreinforced concrete, cracked and non-cracked

PRODUCT MATERIAL:
electro-galvanized steel.
APPLICATION:
Product for embedding in cracked and non-cracked concrete of min. C20/25.
Example of use:
The anchor can be used for fastening: storage racks, brackets, barriers, handrails, installations, chairs and other metal elements.
TECHNICAL DATA:
8 x 60 mm
