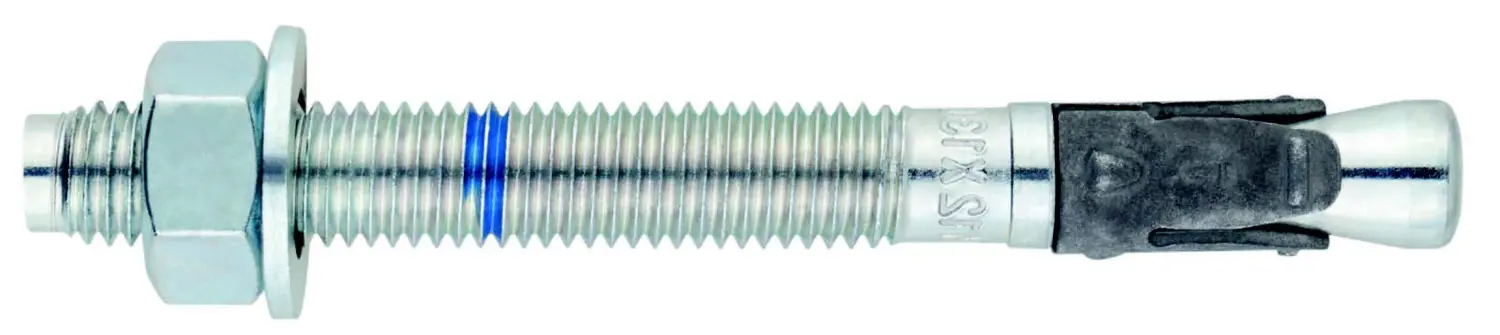

Steel anchor type X LSX 12 x 150 mm (5904012170117)

The LSX steel band anchor is used for fastening light and medium-sized metal structures to cracked and non-cracked concrete. The anchor consists of a threaded pin with a washer and a nut with a washer. All components are made of electro-galvanized carbon steel, while the band is coated with the Atlantis coating for increased corrosion resistance. The anchor is used in various installation applications, primarily in construction and industry. Its design allows for quick installation by hammering in and then tightening the nut, facilitating precise application. The cold-formed steel from which it is made prevents the pin from cracking during driving and tightening. A wide range of diameters and lengths allows for appropriate selection.
FEATURES:

• pin made of carbon steel with zinc coating ≥5µm, clip made of carbon steel with Atlantis coating ≥15µm, nut DIN 934 galvanized ≥5µm, washer DIN 125 or DIN 9021, galvanized ≥5µm
• fixings in substrates such as: ordinary reinforced and unreinforced concrete, cracked and non-cracked

PRODUCT MATERIAL:
electro-galvanized steel.
APPLICATION:
Product for embedding in cracked and non-cracked concrete of min. C20/25.
Example of use:
The anchor can be used for fastening: storage racks, brackets, barriers, handrails, installations, chairs and other metal elements.
TECHNICAL DATA:
8 x 50 mm
